    Coaxial Circulator 2.0 ~ 6.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
          (GHz)

    Isolation

    Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o103030026SK

    2.0 ~ 6.0

    13

    1.5

    0.8

    SMA Female

    +20 ~ +70

    13

    1.5

    1.5@2.0~2.5GHz

    0.8@2.5~6.0GHz

    -40 ~ +20

    5o103030026NK

    2.0 ~ 6.0

    13

    1.5

    0.8

    N Female

    +20 ~ +70

    13

    1.5

    1.5@2.0~2.5GHz

    0.8@2.5~6.0GHz

    -40 ~ +20

    Basic Specifications

    Dimension

    30.5*30.5*15mm

    Impedance

    50Ω

    Forward Power

    100W

    Operating Temperature

    -40 ~ +70℃

    Reverse Power

    100W

    Storage Temperature

    -55 ~+125℃

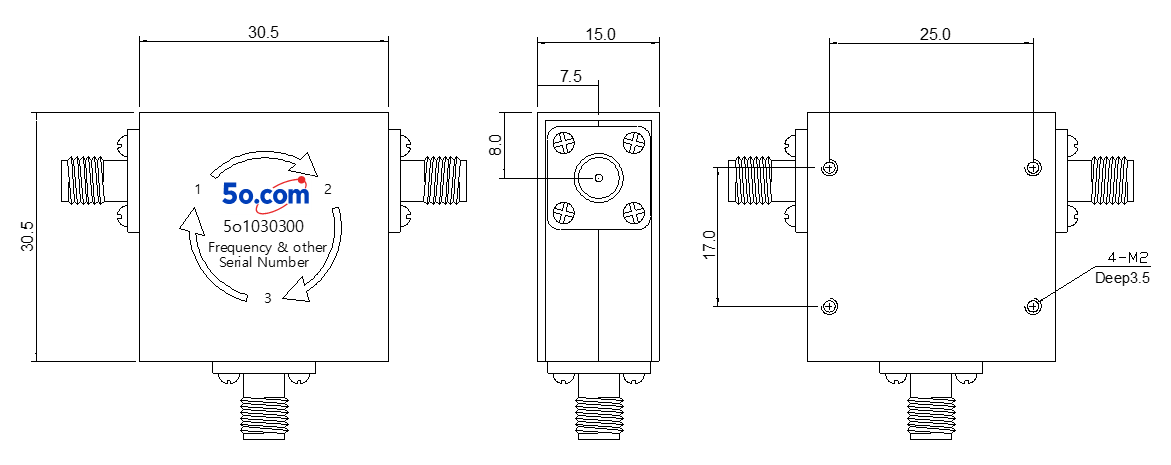

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
