    Coaxial Circulator 26.5 ~ 40.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
      (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o101316026540KK

    26.5 ~ 40.0

    14

    1.6

    1.5

    2.92mm Female

    +25±5

    12

    1.8

    1.7

    -45 ~ +85

    Basic Specifications

    Dimension

    13*16*12.8mm

    Impedance

    50Ω

    Forward Power

    10W

    Connector Type

    2.92mm Female/Male

    Reverse Power

    10W

    Storage Temperature

    -55~+125℃

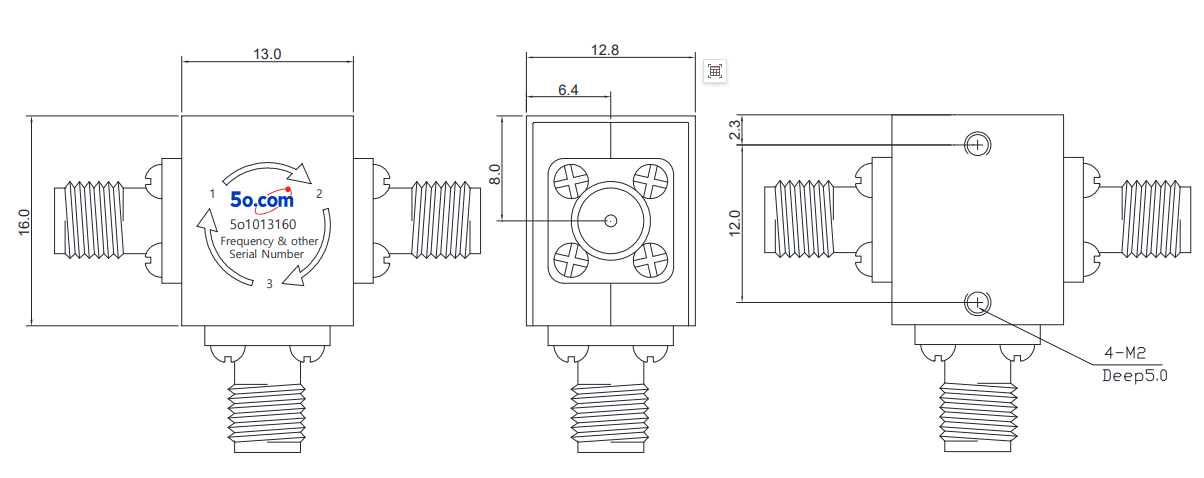

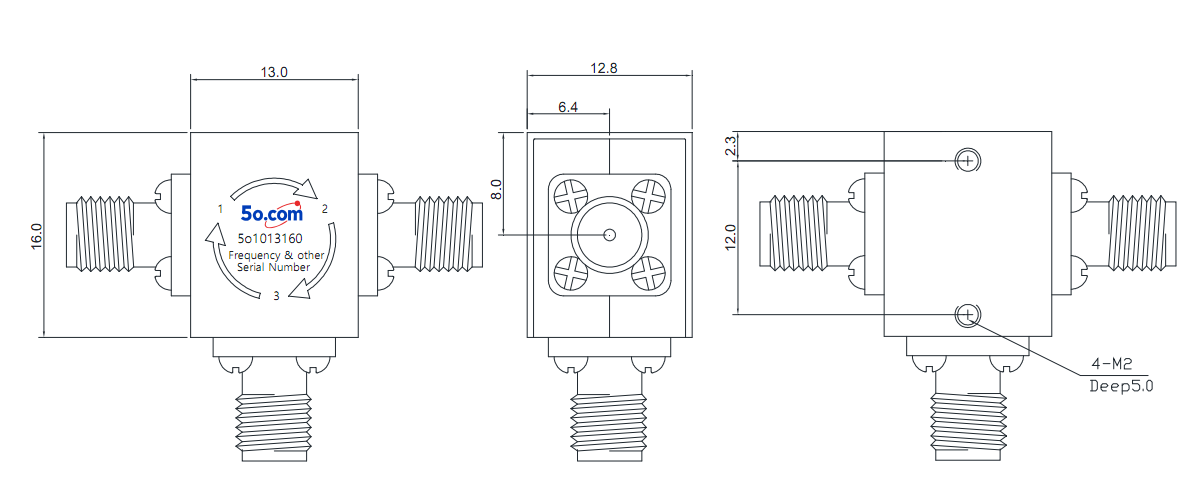

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (2.92mm Male/Female , etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty
