    500W Coaxial Circulator 1.0 ~2.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o10118140012NK

    1.0 ~ 2.0

    15

    1.5

    0.8

    N Female

    5o10118140012NJNKNK

    1.0 ~ 2.0

    15

    1.5

    0.8

    N Male to N Female to N Female

    5o10118140012NKNJNK

    1.0 ~ 2.0

    15

    1.5

    0.8

    N Female to N Male to N Female

    Basic Specifications

    Dimension

    118*140*100mm

    Impedance

    50Ω

    Forward Power

    500W

    Operating   Temperature

    +10 ~ +60℃

    Reverse   Power

    500W

    Storage Temperature

    -55~+125℃

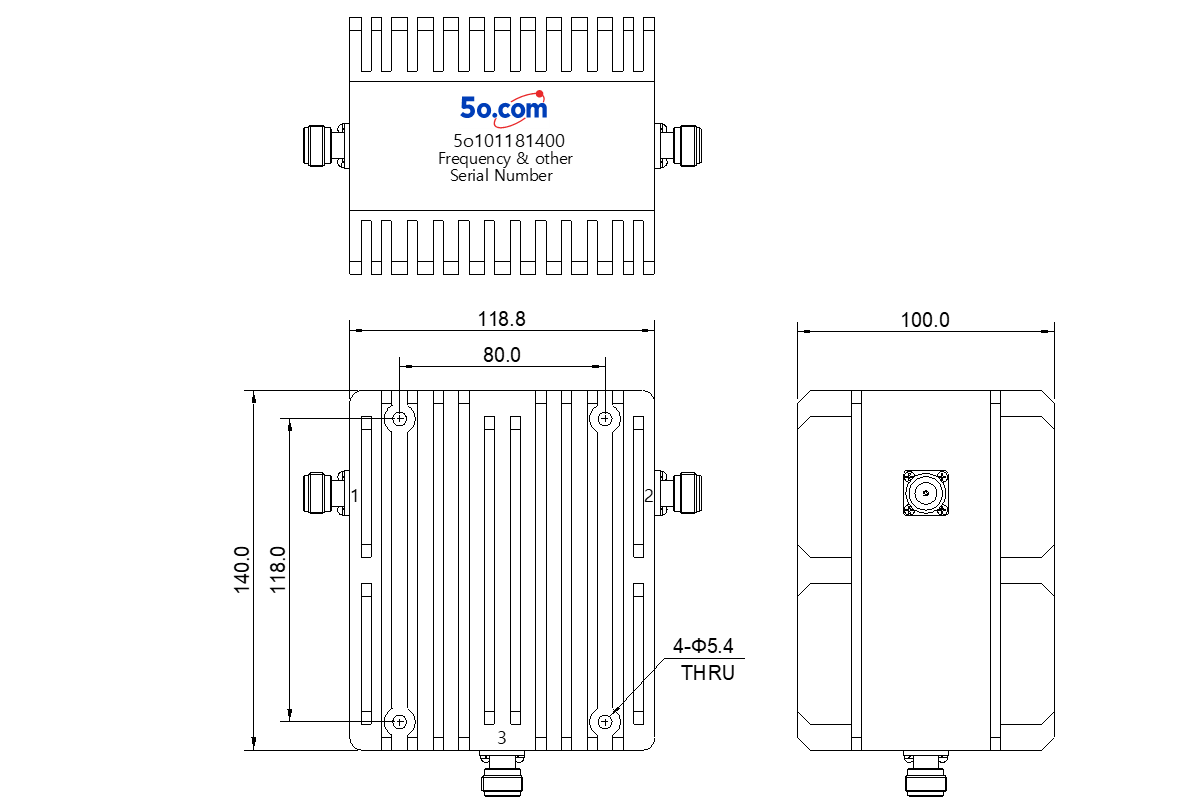

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
