    Coaxial Circulator 70 ~130MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1010010007075NK

    70   ~ 75

    16

    1.45

    1.2

    N Female

    0   ~ +70

    5o1010010007585NK

    75   ~ 85

    16

    1.45

    1.2

    N Female

    0   ~ +70

    5o1010010007696NK

    76   ~ 96

    16

    1.45

    1.2

    N Female

    0   ~ +70

    5o1010010008090NK

    80   ~ 90

    16

    1.45

    0.8

    N Female

    0   ~ +70

    5o10100100088108NK

    88   ~ 108

    17

    1.35

    0.8

    N Female

    0   ~ +70

    5o101001000110130NK

    110   ~ 130

    20

    1.25

    0.5

    N Female

    0   ~ +70

    Basic Specifications

    Dimension

    100*100*40mm

    Impedance

    50Ω

    Forward Power

    500W

    Connector Type

    N Female/Male

    Reverse Power

    500W

    Storage Temperature

    -55~+125℃

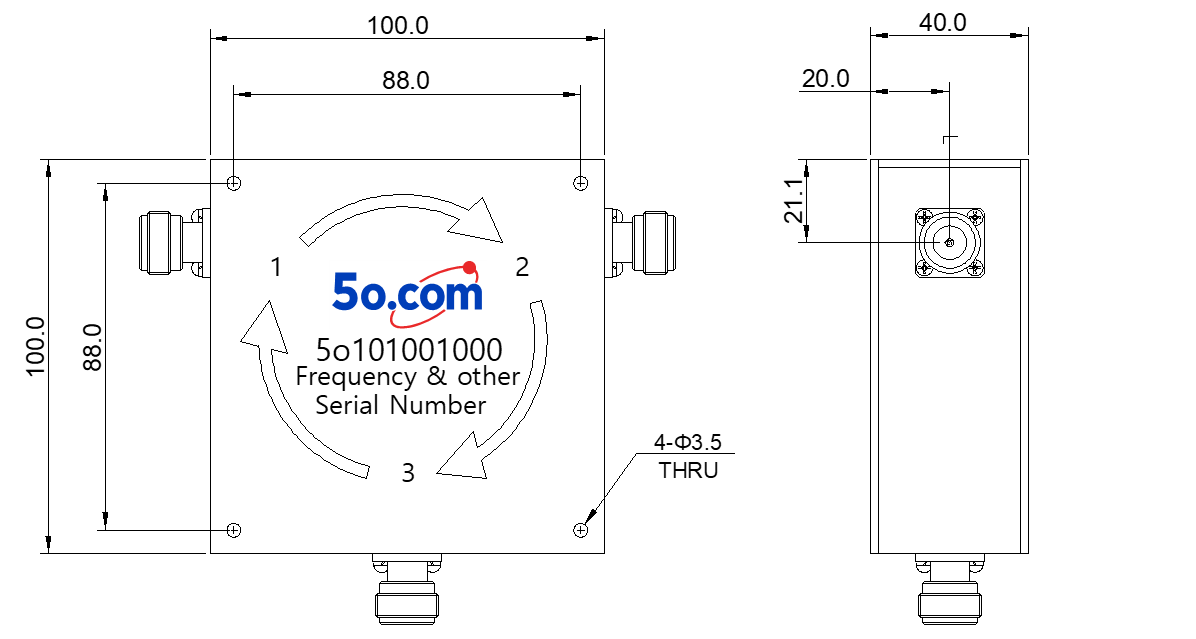

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
