    Waveguide Isolator 10.0 ~ 15.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o06444401012

    10.0 ~ 12.0

    23

    1.2

    0.3

    WR75(BJ120)

    5o06444401011

    10.0 ~ 11.0

    23

    1.2

    0.3

    WR75(BJ120)

    5o06444401071275

    10.7 ~ 12.75

    23

    1.2

    0.3

    WR75(BJ120)

    5o064444011124

    11.0 ~ 12.4

    20

    1.2

    0.35

    WR75(BJ120)

    5o0644440124138

    12.4 ~ 13.8

    20

    1.2

    0.35

    WR75(BJ120)

    5o064444013751425

    13.75 ~ 14.25

    23

    1.2

    0.3

    WR75(BJ120)

    5o06444401415

    14.0 ~ 15.0

    23

    1.2

    0.3

    WR75(BJ120)

    Basic Specifications

    Dimension

    44.5*44.5*38.1mm

    Impedance

    50Ω

    Forward Power

    100W

    Operating   Temperature

    -40 ~ +85℃

    Reverse   Power

    30W

    Storage Temperature

    -55 ~+125℃

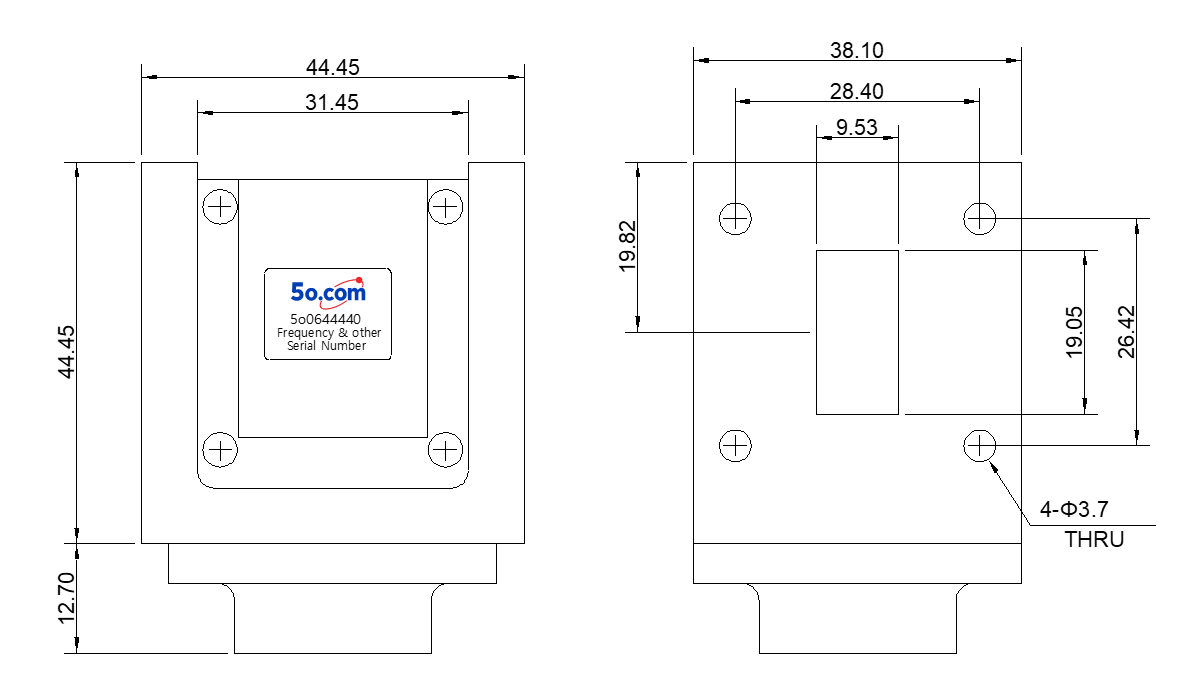

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The waveguide isolator shall be accurately mated with the matching waveguide flange.

    ◆During installation, ensure the flange surface is clean and free of impurities (e.g., metal debris, dust). The flange connecting bolts shall be tightened evenly to prevent radio frequency (RF) leakage and excessive voltage standing wave ratio (VSWR) caused by poor sealing or uneven stress.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
