    Waveguide Isolator 12.4 ~ 18.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o06333301241375

    12.4 ~ 13.75

    20

    1.2

    0.35

    WR62(BJ140)

    -40 ~ +85

    5o06333301375145

    13.75 ~ 14.5

    23

    1.2

    0.3

    WR62(BJ140)

    -40 ~ +85

    5o0633330145155

    14.5 ~ 15.5

    23

    1.2

    0.3

    WR62(BJ140)

    -40 ~ +85

    5o06333301518

    15.0 ~ 18.0

    20

    1.2

    0.35

    WR62(BJ140)

    -40 ~ +85

    5o0633330155165

    15.5 ~ 16.5

    23

    1.2

    0.3

    WR62(BJ140)

    -40 ~ +85

    5o0633330165175

    16.5 ~ 17.5

    23

    1.2

    0.3

    WR62(BJ140)

    -40 ~ +85

    Basic Specifications

    Dimension

    33*33*21mm

    Impedance

    50Ω

    Forward   Power

    100W

    Operating   Temperature

    -40 ~ +85℃

    Reverse   Power

    30W

    Storage   Temperature

    -55~+125℃

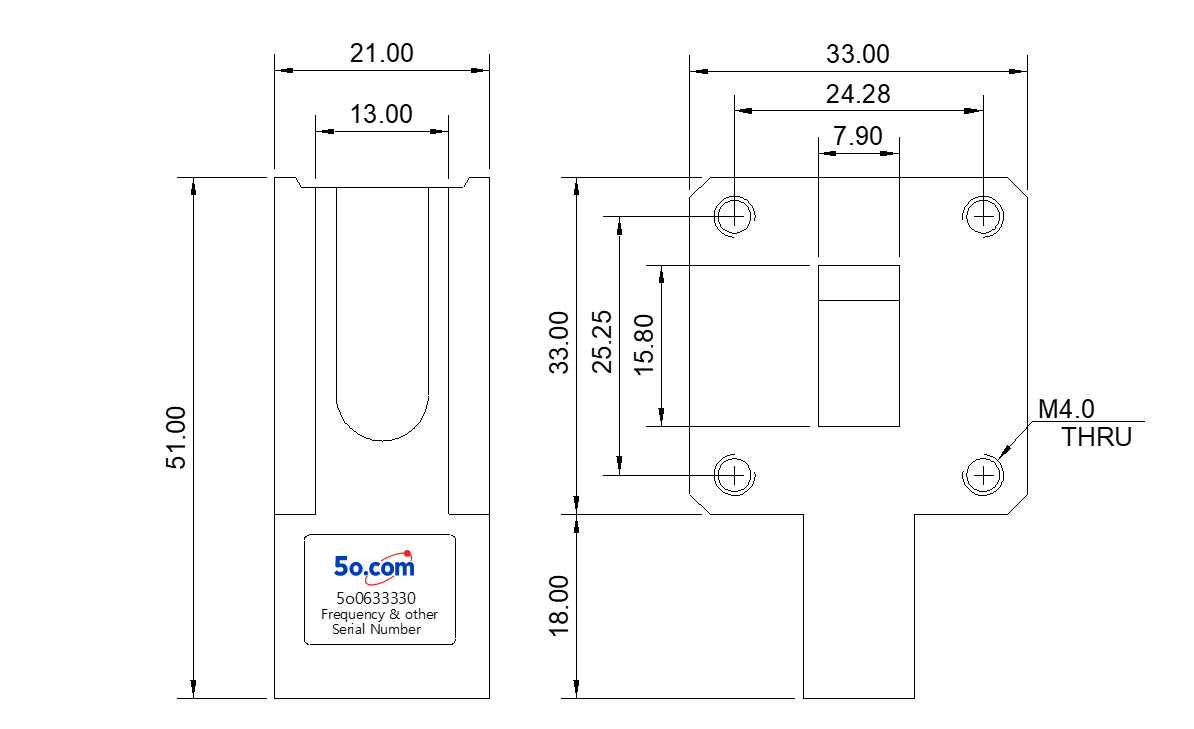

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆The waveguide isolator shall be accurately mated with the matching waveguide flange.

    ◆During installation, ensure the flange surface is clean and free of impurities (e.g., metal debris, dust). The flange connecting bolts shall be tightened evenly to prevent radio frequency (RF) leakage and excessive voltage standing wave ratio (VSWR) caused by poor sealing or uneven stress.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
