Waveguide Isolator 21.7 to 33.0GHz

 Application

▶RF power amplifier protection.

▶Digital, Satellite, Mobile Communication.

▶Medical, Communication, Security.

▶Military, Space and Commercial applications.

RF Characteristics

Part Number

Frequency Range (GHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

5o06306012223

22.0 ~ 23.0

20

1.2

0.3

WR34(BJ260)

5o06306012426

24.0 ~ 26.0

20

1.2

0.3

WR34(BJ260)

5o06306012527

25.0 ~ 27.0

20

1.2

0.3

WR34(BJ260)

5o06306012729

27.0 ~ 29.0

20

1.2

0.3

WR34(BJ260)

5o06306012731

27.0 ~ 31.0

20

1.25

0.4

WR34(BJ260)

5o06306012931

29.0 ~ 31.0

20

1.2

0.3

WR34(BJ260)

5o06306013033

30.0 ~ 33.0

20

1.2

0.3

WR34(BJ260)

Basic Specifications

Dimension

30*60*22.4mm

Impedance

50Ω

Forward   Power

60W

Operating   Temperature

-40 ~ +70℃

Reverse   Power

3W

Storage   Temperature

-55~+125℃

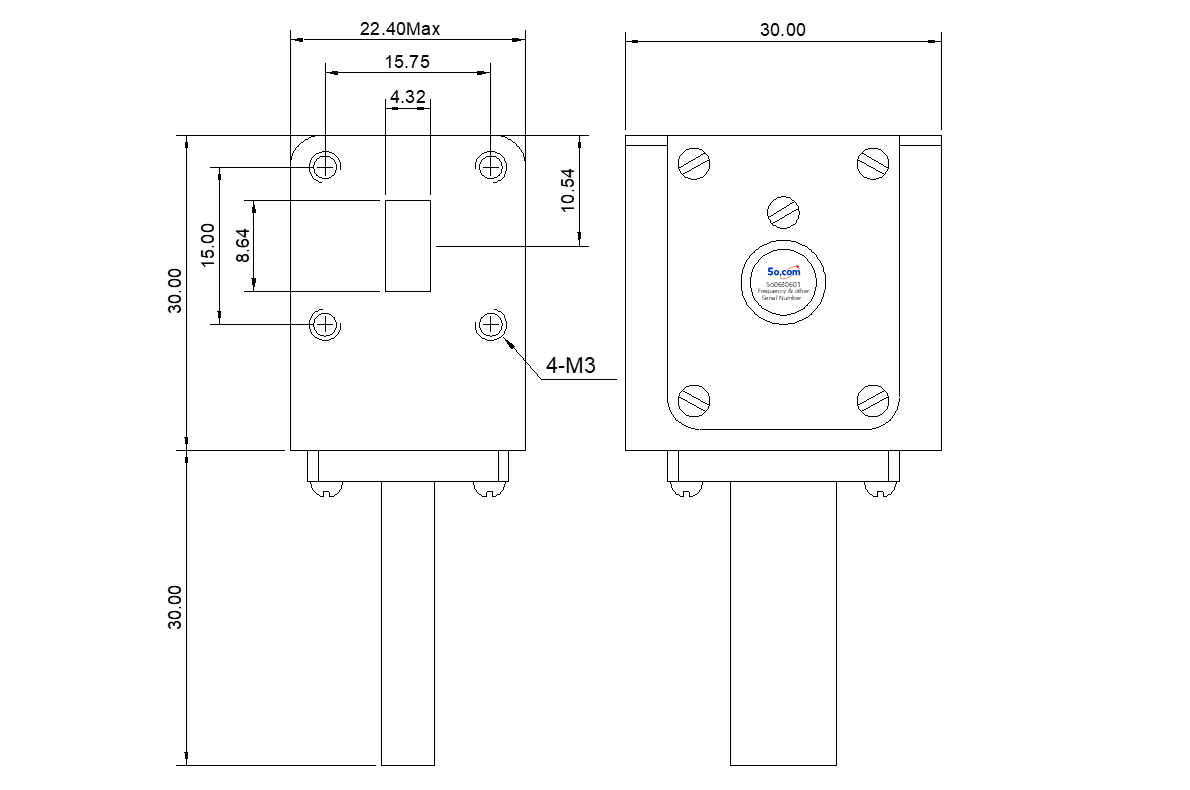

Overall Dimension(mm)


Instructions                              Tolerances: ±2% unless otherwise stated.

◆The waveguide isolator shall be accurately mated with the matching waveguide flange.

◆During installation, ensure the flange surface is clean and free of impurities (e.g., metal debris, dust). The flange connecting bolts shall be tightened evenly to prevent radio frequency (RF) leakage and excessive voltage standing wave ratio (VSWR) caused by poor sealing or uneven stress.

◆Only some common frequencies in the table can be produced according to the user's requirements.

◆ It supports a one-year standard warranty.
