    Waveguide Isolator 18.0 ~ 26.5GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o062869018265

    18.0 ~ 26.5

    20

    1.25

    0.3

    WR42(BJ220)

    Basic Specifications

    Dimension

    22.4*69*28mm

    Impedance

    50Ω

    Forward   Power

    100W

    Operating   Temperature

    -40 ~ +85℃

    Reverse   Power

    30W

    Storage   Temperature

    -55~+125℃

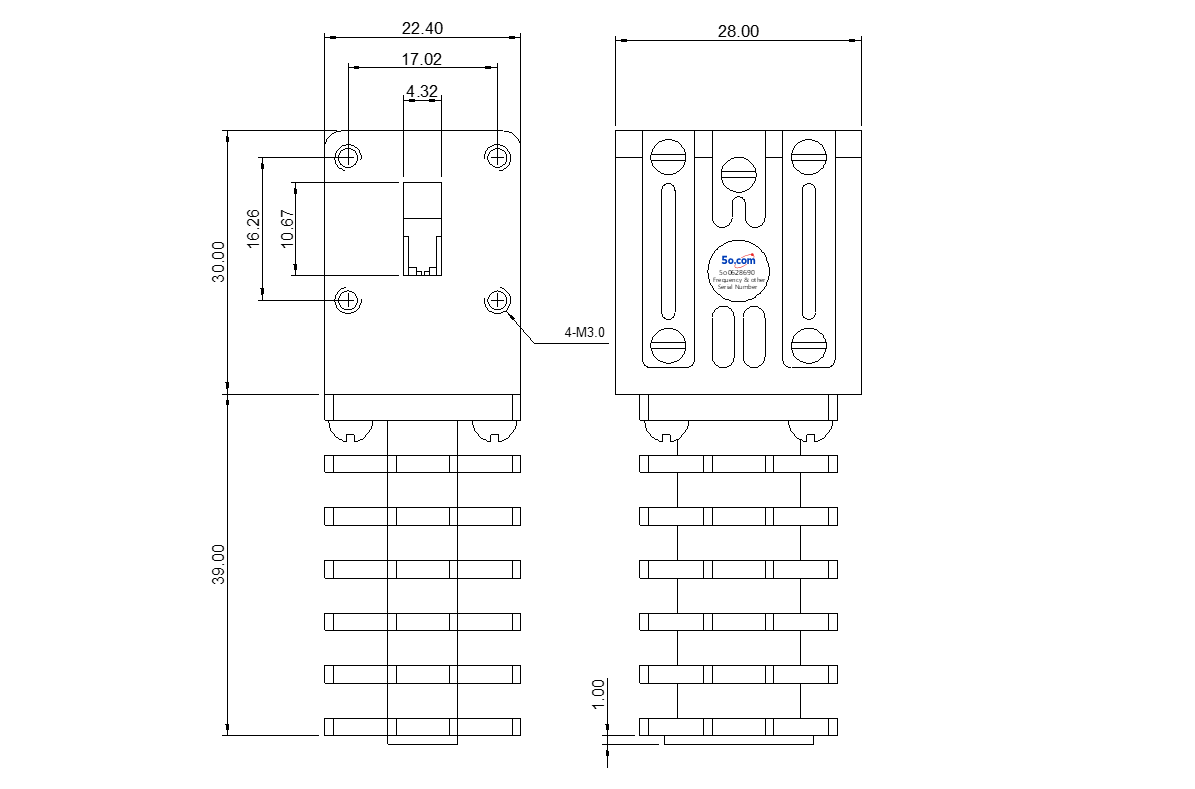

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆The waveguide isolator shall be accurately mated with the matching waveguide flange.

    ◆During installation, ensure the flange surface is clean and free of impurities (e.g., metal debris, dust). The flange connecting bolts shall be tightened evenly to prevent radio frequency (RF) leakage and excessive voltage standing wave ratio (VSWR) caused by poor sealing or uneven stress.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
