    Microstrip Isolator 8.0 ~ 12.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

       ▶Medical, Communication, Security.

       ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o05781812

    8.0 ~ 12.0

    18

    1.35

    0.6

    Microstrip

    Basic Specifications

    Dimension

    7*8*3mm

    Impedance

    50Ω

    Forward   Power

    10W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    3W

    Storage   Temperature

    -55~+125℃

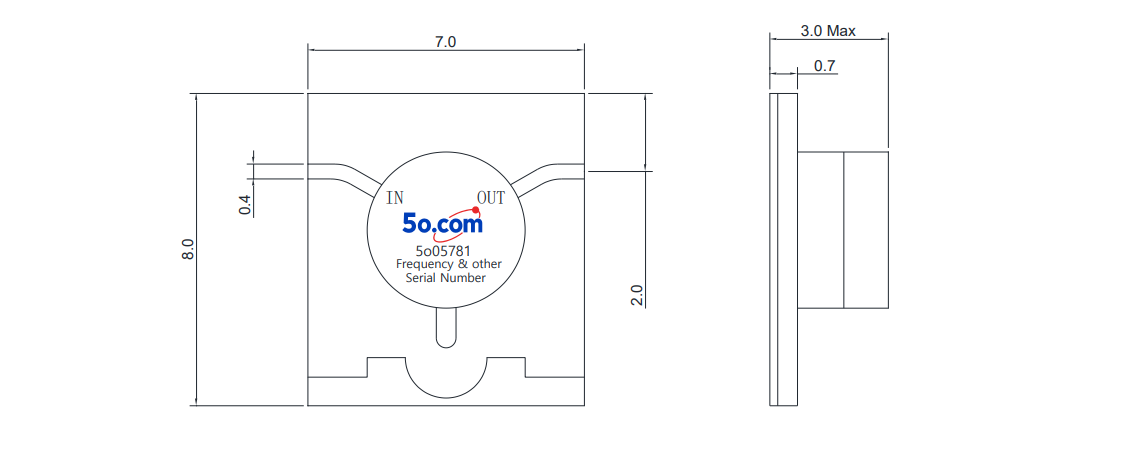

    Overall Dimension(mm)

     5o05781.pngInstructions                               Tolerances: ±2% unless otherwise stated.

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
