    Microstrip Isolator 7.0 ~ 12.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o05780775

    7.0 ~ 7.5

    20

    1.25

    0.5

    Microstrip

    5o0578079

    7.0 ~ 9.0

    18

    1.3

    0.5

    Microstrip

    5o05780722778

    7.22 ~ 7.78

    20

    1.25

    0.5

    Microstrip

    5o05780758

    7.5 ~ 8.0

    20

    1.25

    0.5

    Microstrip

    5o057807595

    7.5 ~ 9.5

    18

    1.3

    0.6

    Microstrip

    5o05780885

    8.0 ~ 8.5

    20

    1.25

    0.5

    Microstrip

    5o05780812

    8.0 ~ 12.0

    18

    1.3

    0.6

    Microstrip

    Basic Specifications

    Dimension

    7*8*3.5mm

    Impedance

    50Ω

    Forward Power

    15W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    5W

    Storage Temperature

    -55 ~+125℃

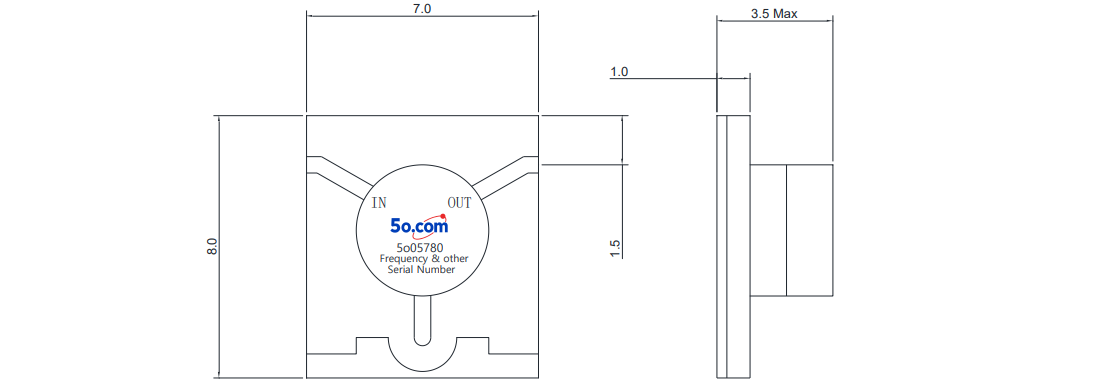

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
