Part Number

Frequency Range (GHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

5o0567089

8.0 ~ 9.0

20

1.25

0.5

Microstrip

5o05670812

8.0 ~ 12.0

17

1.35

0.6

Microstrip

5o05670814

8.0 ~ 14.0

12

1.5

0.9

Microstrip

5o056708595

8.5 ~ 9.5

20

1.3

0.5

Microstrip

5o05670910

9.0 ~ 10.0

20

1.25

0.5

Microstrip

5o0567095105

9.5 ~ 10.5

20

1.25

0.5

Microstrip

5o05670911

9.0 ~ 11.0

18

1.3

0.5

Microstrip

5o05670105115

10.5 ~ 11.5

20

1.25

0.5

Microstrip

5o056701012

10.0 ~ 12.0

20

1.3

0.5

Microstrip

5o056701112

11.0 ~ 12.0

20

1.25

0.5

Microstrip

5o05670115125

11.5 ~ 12.5

20

1.25

0.5

Microstrip

5o056701213

12.0 ~ 13.0

20

1.25

0.5

Microstrip

5o056701214

12.0 ~ 14.0

20

1.25

0.5

Microstrip

5o05670125148

12.5 ~ 14.8

20

1.3

0.55

Microstrip

5o056701314

13.0 ~ 14.0

20

1.25

0.5

Microstrip

5o05670135145

13.5 ~ 14.5

20

1.25

0.5

Microstrip

5o056701415

14.0 ~ 15.0

20

1.25

0.5

Microstrip

5o056701416

14.0 ~ 16.0

20

1.3

0.5

Microstrip

5o05670145155

14.5 ~ 15.5

20

1.25

0.5

Microstrip

5o056701518

15.0 ~ 18.0

18

1.3

0.6

Microstrip

5o05670155165

15.5 ~ 16.5

20

1.25

0.5

Microstrip

5o05670155175

15.5 ~ 17.5

20

1.25

0.5

Microstrip

5o05670165175

16.5 ~ 17.5

20

1.25

0.5

Microstrip

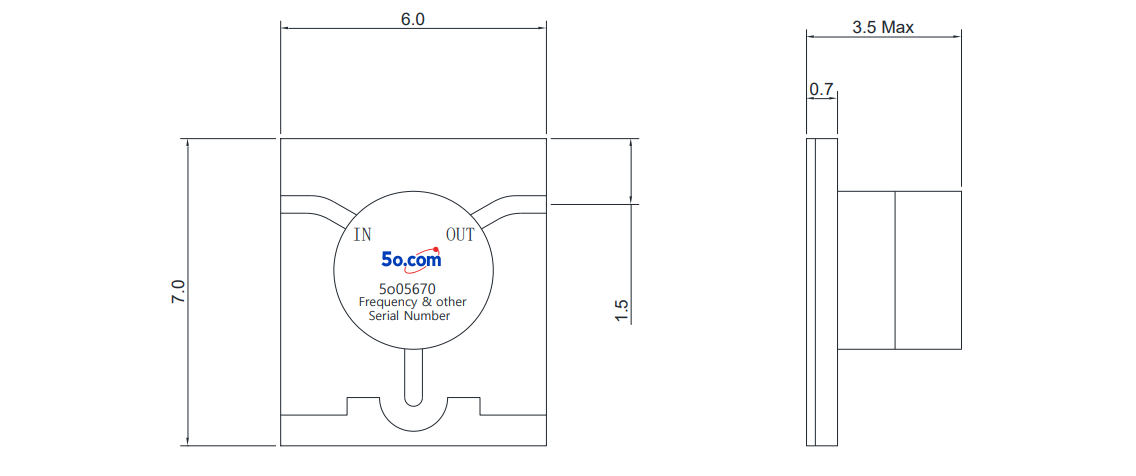

Dimension

6*7*3.5mm

Impedance

50Ω

Forward   Power

15W

Operating   Temperature

-55 ~ +85℃

Reverse   Power

3W

Storage   Temperature

-55~+125℃
