    Microstrip Isolator 18.0 ~ 24.0GHz



     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o054501822

    18.0 ~ 22.0

    17

    1.3

    0.6

    Microstrip

    5o05450192232

    19.2 ~ 23.2

    17

    1.3

    0.6

    Microstrip

    Basic Specifications

    Dimension

    4.5*5.5*3.5mm

    Impedance

    50Ω

    Forward Power

    2W Peak 10W

    Operating Temperature

    -55 ~ +85℃

    Reverse Power

    2W Peak 10W

    Storage Temperature

    -55~+125℃

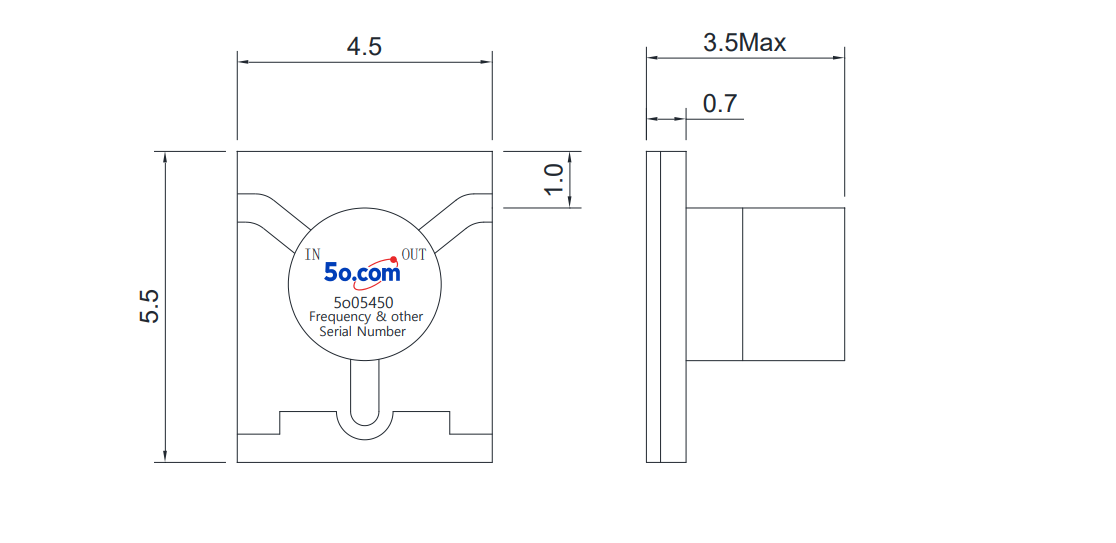

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
