    Microstrip Isolator 37 .0 ~ 43.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o054423743

    37.0~ 43.0

    14

    1.5

    1.4

    Microstrip

    5o054423843

    38.0~ 43.0

    14

    1.5

    1.4

    Microstrip

    Basic Specifications

    Dimension

    4*4.5*4mm

    Impedance

    50Ω

    Forward Power

    2W

    (Pules 100us DC 20%)

    Operating Temperature

    -55 ~ +85℃

    Reverse Power

    2W

    (Pules 100us DC 20%)

    Storage Temperature

    -55 ~+125℃

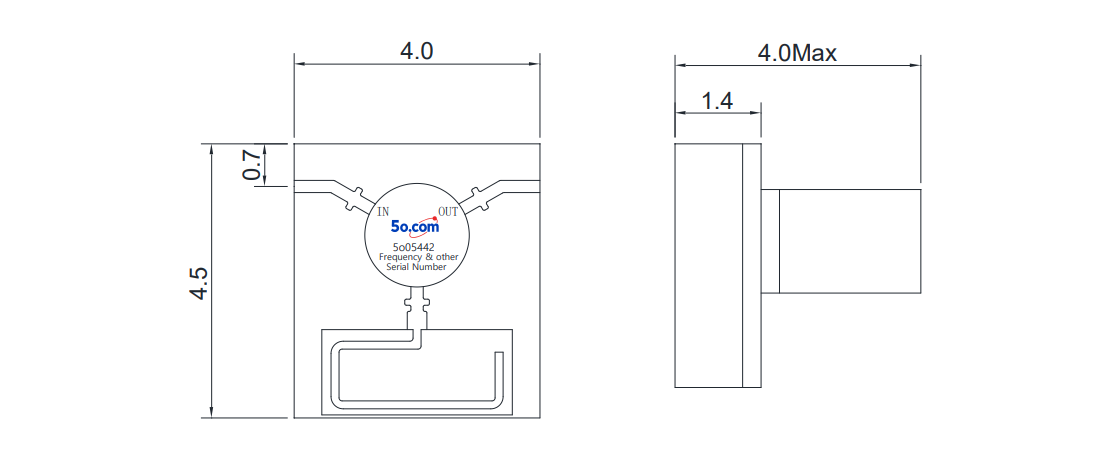

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

     ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
