    Microstrip Isolator 31.0 ~ 40.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o053403139

    31.0 ~ 39.0

    14

    1.4

    1.0

    Microstrip

    5o053403140

    31.0 ~ 40.0

    14

    1.5

    1.2

    Microstrip

    5o053403238

    32.0 ~ 38.0

    14

    1.4

    1.0

    Microstrip

    5o053403240

    32.0 ~ 40.0

    14

    1.4

    1.0

    Microstrip

    5o053403337

    33.0 ~ 37.0

    14

    1.4

    1.0

    Microstrip

    5o053403540

    35.0 ~ 40.0

    14

    1.4

    1.0

    Microstrip

    Basic Specifications

    Dimension

    3.5*4*3.5mm

    Impedance

    50Ω

    Forward Power

    2W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    2W

    Storage Temperature

    -55 ~+125℃

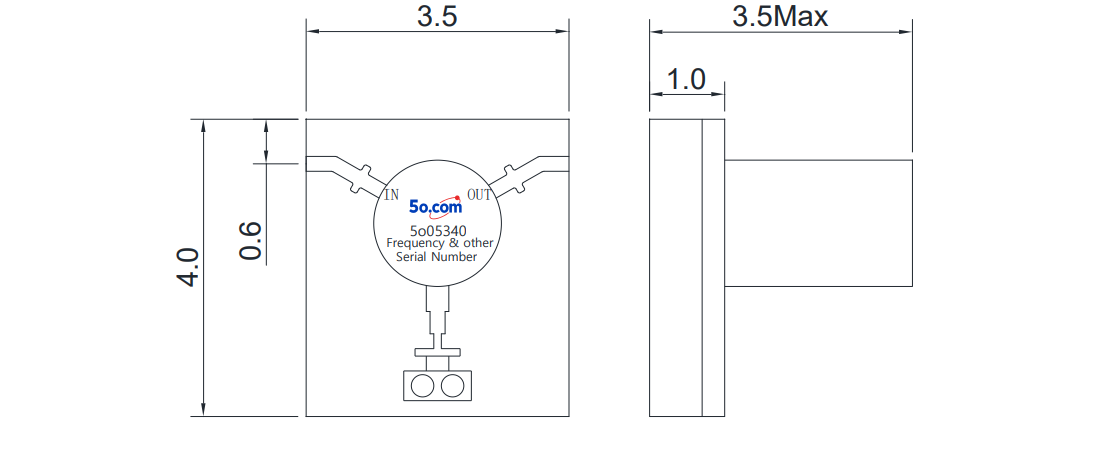

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
