    Microstrip Isolator 6.0 ~ 18.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector Type

    Temp.(°C)

    5o051290618

    6.0 ~ 18.0

    14

    1.7

    1.0

    Microstrip

    25±5

    1.3

    -55 ~ +85

    5o051290818

    8.0 ~ 18.0

    15

    1.6

    1.0

    Microstrip

    -55 ~ +85

    Basic Specifications

    Dimension

    12*9.7*6mm

    Impedance

    50Ω

    Forward Power

    16W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    2W

    Storage Temperature

    -55 ~ +125℃

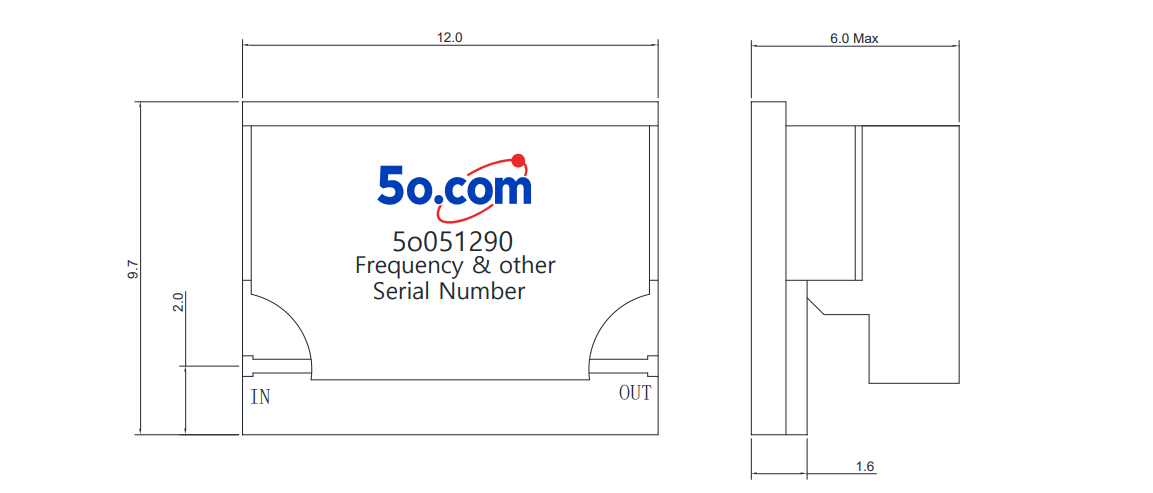

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)

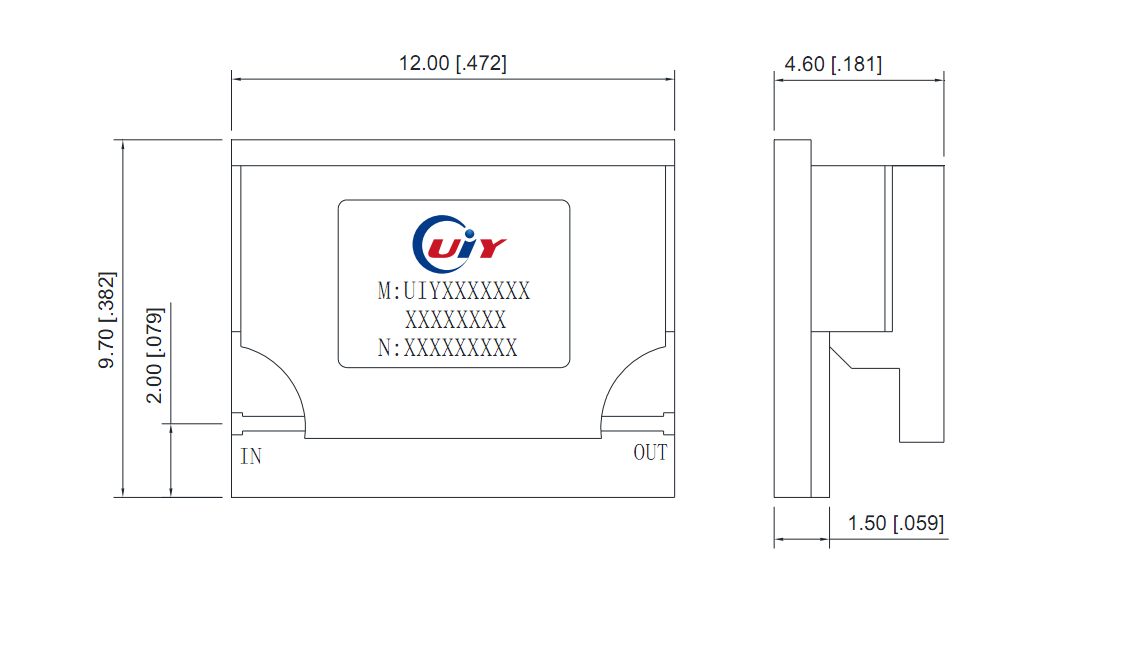

    5o051290 (2).png

    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
