    Microstrip Isolator 5.0 ~ 8.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o051010058

    5.0 ~ 8.0

    16

    1.5

    0.9

    Microstrip

    5o05101005258

    5.2 ~ 5.8

    20

    1.25

    0.5

    Microstrip

    5o0510100576

    5.7 ~ 6.0

    20

    1.25

    0.4

    Microstrip

    5o05101005867

    5.8 ~ 6.7

    18

    1.3

    0.5

    Microstrip

    5o0510100665

    6.0 ~ 6.5

    20

    1.25

    0.4

    Microstrip

    5o0510100647

    6.4 ~ 7.0

    20

    1.25

    0.5

    Microstrip

    5o05101006575

    6.5 ~ 7.5

    20

    1.3

    0.5

    Microstrip

    Basic Specifications

    Dimension

    10*10*4mm

    Impedance

    50Ω

    Forward Power

    15W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    5W

    Storage Temperature

    -55 ~+125℃

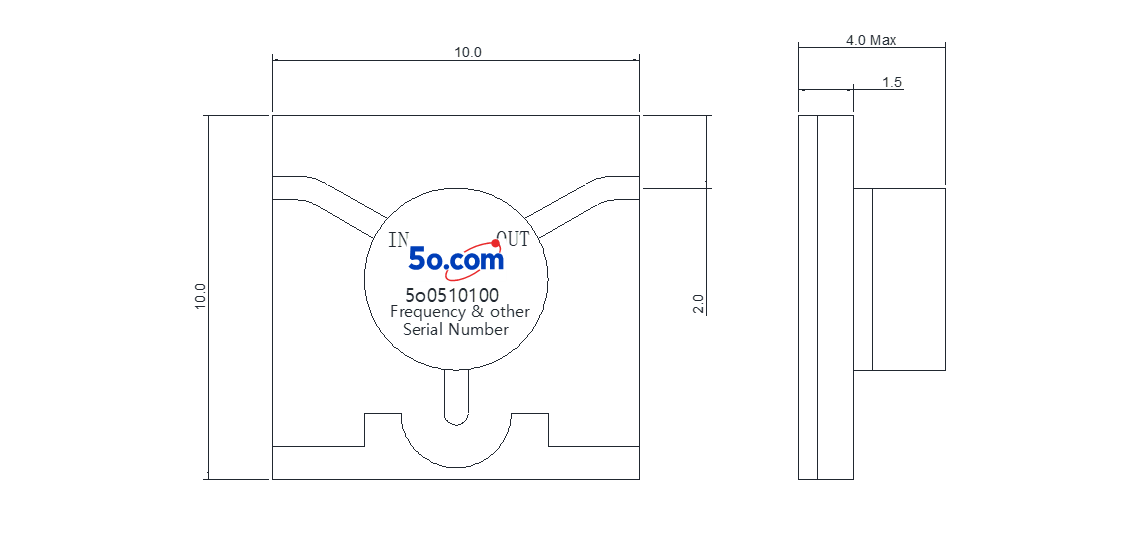

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
