Surface Mount Isolator 200 to 1875MHz 5o04360

Surface Mount Isolator 200 ~ 1875MHz

Application

▶RF power amplifier protection.

▶Digital, Satellite, Mobile Communication.

▶Medical, Communication, Security.

▶Military, Space and Commercial applications.

RF Characteristics

Part Number	Frequency Range (MHz)	Isolation Min(dB)	VSWR Max	Insertion Loss Max(dB)	Connector Type	Temp.(°C)
5o04360220240	220 ~ 240	18	1.3	0.65	SMT	-20 ~ +65
5o04360240260	240 ~ 260	18	1.3	0.5	SMT	-20 ~ +65
5o04360260280	260 ~ 280	20	1.25	0.5	SMT	-20 ~ +65
5o04360309339	309 ~ 339	20	1.25	0.4	SMT	-20 ~ +65
5o04360350370	350 ~ 370	21	1.2	0.35	SMT	-20 ~ +65
5o04360380460	380 ~ 460	18	1.3	0.5	SMT	-20 ~ +65
5o04360390410	390 ~ 410	23	1.2	0.3	SMT	-30 ~ +70
5o04360400470	400 ~ 470	20	1.25	0.4	SMT	-30 ~ +70
5o04360413419	413 ~ 419	30	1.15	0.3	SMT	-30 ~ +70
5o04360419425	419 ~ 425	30	1.15	0.3	SMT	-30 ~ +70
5o04360440470	440 ~ 470	23	1.2	0.3	SMT	-30 ~ +70
5o04360450520	450 ~ 520	20	1.25	0.4	SMT	-20 ~ +65
5o04360600800	600 ~ 800	19	1.25	0.5	SMT	-20 ~ +65
5o04360700900	700 ~ 900	20	1.25	0.4	SMT	-30 ~ +70
5o043607001000	700 ~ 1000	16	1.4	0.6	SMT	-20 ~ +65
5o04360770860	770 ~ 860	23	1.2	0.3	SMT	-30 ~ +70
5o04360860872	860 ~ 872	30	1.15	0.25	SMT	-20 ~ +65
5o04360900930	900 ~ 930	30	1.15	0.2	SMT	-40 ~ +85
5o0436010001300	1000 ~ 1300	20	1.25	0.4	SMT	-30 ~ +70
5o0436011001700	1100 ~ 1700	15	1.45	0.5	SMT	-30 ~ +70
5o0436012961298	1296 ~ 1298	30	1.15	0.2	SMT	-30 ~ +70

Basic Specifications

Dimension	Φ36*11mm	Impedance	50Ω
Forward Power	200W	Operating Temperature	-40 ~ +85℃
Reverse Power	10W	Storage Temperature	-55~+125℃

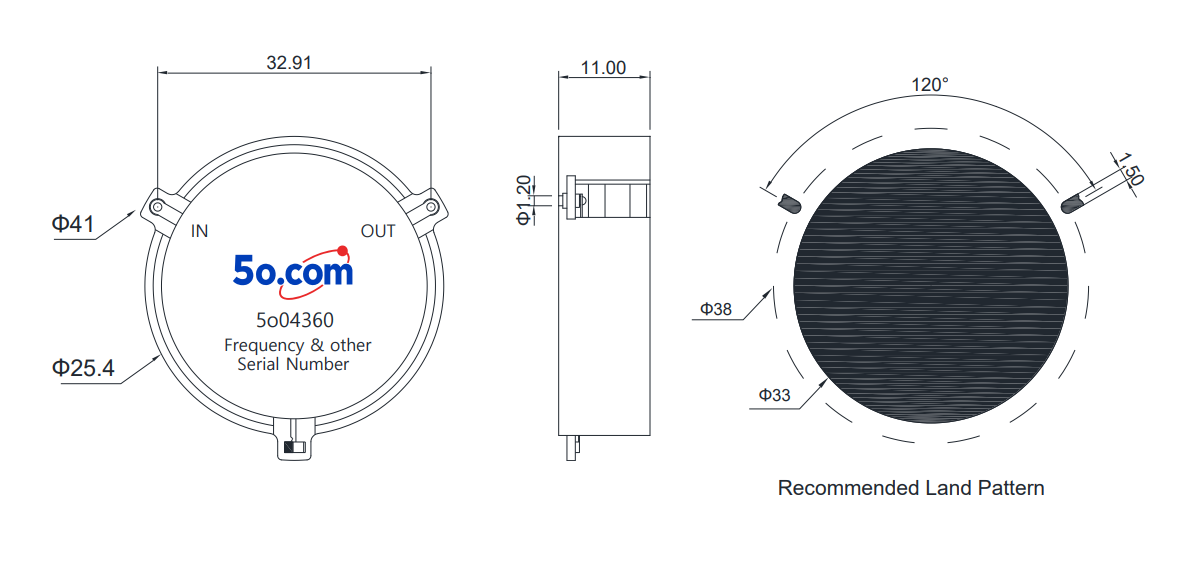

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.

Instructions

◆When surface mount isolators/circulators use reflow soldering technology, the maximum temperature shall not exceed 260 degrees.

◆Only some common frequencies in the table can be produced according to the user's requirements.

◆It supports a one-year standard warranty.
