Part Number

Frequency Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

5o04250210220

210 ~ 220

18

1.3

0.6

SMT

5o04250220230

220 ~ 230

18

1.3

0.5

SMT

5o04250250270

250 ~ 270

18

1.3

0.5

SMT

5o04250300320

300 ~ 320

20

1.25

0.5

SMT

5o04250350370

350 ~ 370

20

1.25

0.4

SMT

5o04250380460

380 ~ 460

17

1.35

0.5

SMT

5o04250400470

400 ~ 470

18

1.3

0.5

SMT

5o04250410425

410 ~ 425

25

1.15

0.3

SMT

5o04250430470

430 ~ 470

20

1.25

0.4

SMT

5o04250450512

450 ~ 512

20

1.25

0.5

SMT

5o04250490510

490 ~ 510

25

1.15

0.25

SMT

5o04250600700

600 ~ 700

21

1.2

0.3

SMT

5o04250700803

700 ~ 803

23

1.2

0.3

SMT

5o042508001000

800 ~ 1000

19

1.25

0.4

SMT

5o04250860960

860 ~ 960

23

1.25

0.3

SMT

5o04250869894

869 ~ 894

25

1.15

0.2

SMT

5o04250925960

925 ~ 960

25

1.15

0.2

SMT

5o042509501250

950 ~ 1250

18

1.3

0.5

SMT

5o0425011501650

1150 ~   1650

15

1.45

0.5

SMT

5o0425012001400

1200 ~   1400

23

1.2

0.3

SMT

5o0425013001800

1300 ~   1800

16

1.4

0.5

SMT

5o0425015001700

1500 ~   1700

23

1.2

0.3

SMT

5o0425017102170

1710 ~   2170

20

1.25

0.4

SMT

5o0425018051880

1805 ~   1880

25

1.15

0.2

SMT

5o0425019201990

1920 ~   1990

25

1.15

0.2

SMT

5o0425020002500

2000 ~   2500

20

1.25

0.5

SMT

5o0425023002500

2300 ~   2500

25

1.15

0.25

SMT

5o0425023002700

2300 ~   2700

23

1.2

0.3

SMT

5o0425024002600

2400 ~   2600

25

1.15

0.25

SMT

5o0425024962690

2496 ~   2690

25

1.15

0.25

SMT

5o0425025002700

2500 ~   2700

25

1.15

0.25

SMT

5o0425027003100

2700 ~   3100

23

1.2

0.25

SMT

5o0425030003600

3000 ~   3600

20

1.25

0.3

SMT

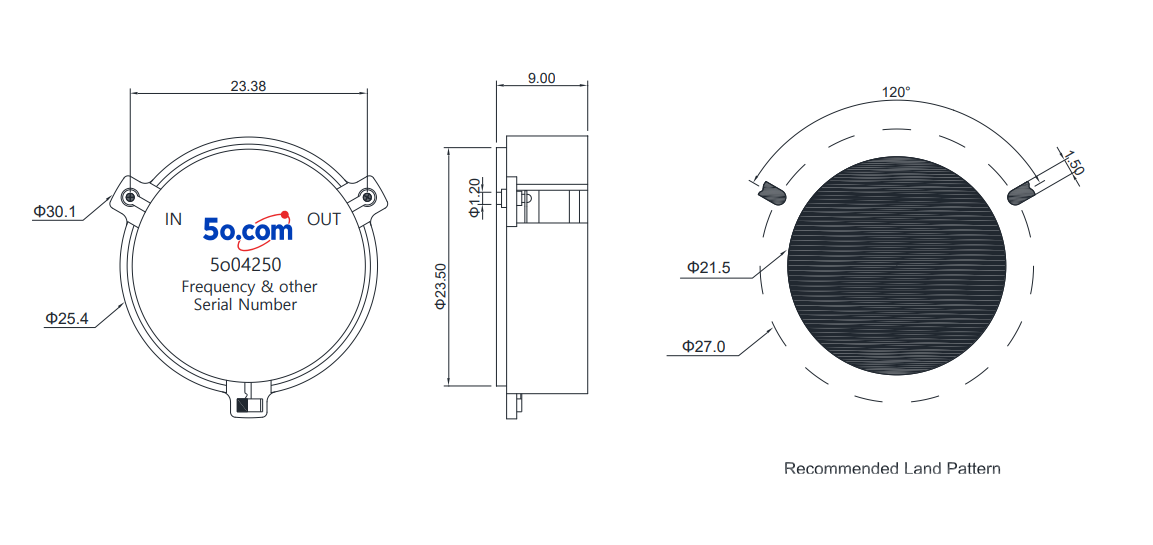

Dimension

Φ25.4*9mm

Impedance

50Ω

Forward Power

30W

Operating   Temperature

-40 ~ +85℃

Reverse Power

10W

Storage   Temperature

-55~+125℃
