Part Number

Frequency Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

5o04200400420

400 ~ 420

16

1.4

0.7

SMT

5o04200430450

430 ~ 450

18

1.3

0.5

SMT

5o04200450470

450 ~ 470

20

1.25

0.5

SMT

5o04200470490

470 ~ 490

20

1.25

0.5

SMT

5o04200490510

490 ~ 510

20

1.25

0.5

SMT

5o04200700800

700 ~ 800

18

1.3

0.5

SMT

5o04200825865

825 ~ 865

20

1.25

0.35

SMT

5o04200860960

860 ~ 960

20

1.25

0.4

SMT

5o04200869894

869 ~ 894

23

1.2

0.3

SMT

5o04200880960

880 ~ 960

23

1.2

0.3

SMT

5o04200902928

902 ~ 928

25

1.15

0.25

SMT

5o04200925960

925 ~ 960

25

1.15

0.25

SMT

5o0420010001200

1000 ~ 1200

20

1.25

0.4

SMT

5o0420014501550

1450 ~ 1550

23

1.2

0.3

SMT

5o0420017102170

1710 ~ 2170

18

1.3

0.5

SMT

5o0420017151805

1715 ~ 1805

23

1.2

0.3

SMT

5o0420018051880

1805 ~ 1880

25

1.15

0.25

SMT

5o0420019201990

1920 ~ 1990

25

1.15

0.25

SMT

5o0420021102170

2110 ~ 2170

25

1.15

0.25

SMT

5o0420020002700

2000 ~ 2700

18

1.3

0.5

SMT

5o0420022002300

2200 ~ 2300

23

1.2

0.3

SMT

5o0420024002500

2400 ~ 2500

23

1.2

0.3

SMT

5o0420024962690

2496 ~ 2690

23

1.2

0.3

SMT

5o0420025002600

2500 ~ 2600

23

1.2

0.3

SMT

5o0420027003100

2700 ~ 3100

20

1.25

0.4

SMT

5o0420030003500

3000 ~ 3500

20

1.25

0.4

SMT

5o0420033003700

3300 ~ 3700

23

1.2

0.3

SMT

5o0420037004200

3700 ~ 4200

20

1.25

0.4

SMT

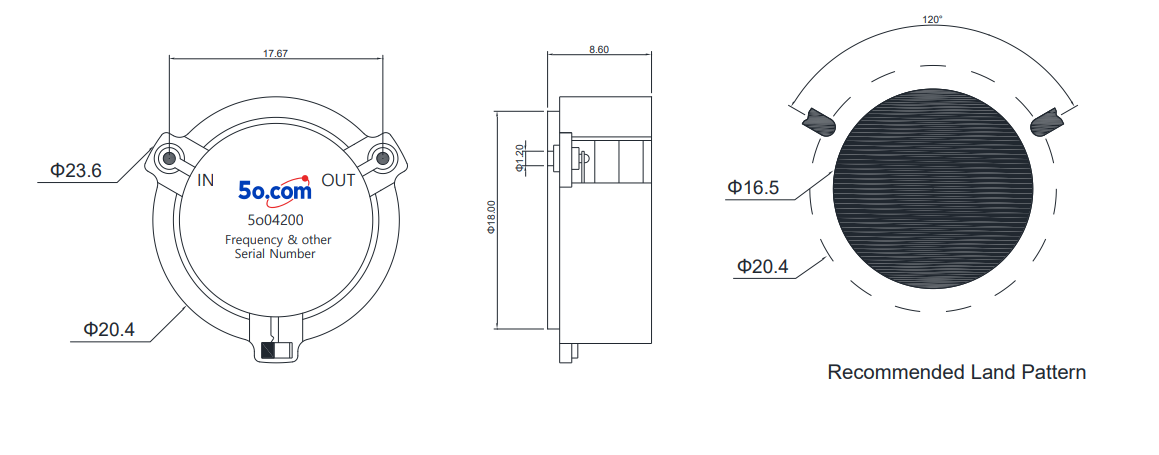

Dimension

Φ20.4*8.6mm

Impedance

50Ω

Forward Power

60W

Operating   Temperature

-40 ~ +85℃

Reverse Power

10W

Storage   Temperature

-55~+125℃
