    Dual Junction Coaxial Isolator 250 ~ 1300MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
       (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0396480300350NK

    300 ~ 350

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o0396480350400NK

    350 ~ 400

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o0396480350500NK

    350 ~ 500

    32

    1.4

    1.2

    N Female

    -30 ~ +70

    5o0396480380470NK

    380 ~ 470

    40

    1.25

    0.7

    N Female

    -30 ~ +70

    5o0396480400470NK

    400 ~ 470

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o0396480400430NK

    400 ~ 430

    50

    1.15

    0.5

    N Female

    -30 ~ +70

    5o0396480440470NK

    440 ~ 470

    50

    1.15

    0.5

    N Female

    -30 ~ +70

    5o0396480440470SK

    440 ~ 470

    50

    1.15

    0.5

    SMA Female

    -30 ~ +70

    5o0396480470570NK

    470 ~ 570

    40

    1.25

    0.8

    N Female

    -30 ~ +70

    5o0396480480520NK

    480 ~ 520

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o0396480570670NK

    570 ~ 670

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o0396480670770NK

    670 ~ 770

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o03964807001000NK

    700 ~ 1000

    36

    1.3

    1.2

    N Female

    -30 ~ +70

    5o039648012001300NK

    1200 ~ 1300

    45

    1.2

    0.5

    N Female

    -30 ~ +70

    Basic Specifications

    Dimension

    96*48*24mm

    Forward Power

    400W

    Reverse Power

    30W

    Connector Type

    N, SMA (Female/Male)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

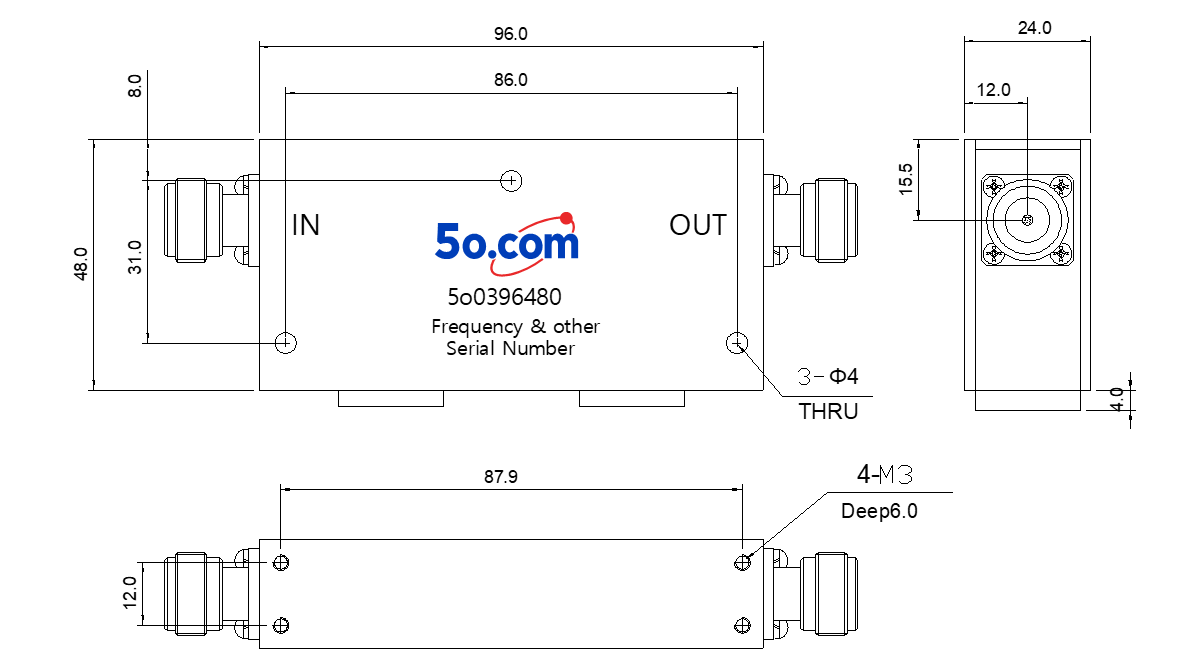

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
