Part Number

Frequency Range
   (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o0370380220240NK

220 ~ 240

36

1.3

1.3

N Female

-20 ~ +65

5o0370380240260NK

240 ~ 260

36

1.3

1.0

N Female

-20 ~ +65

5o0370380260280NK

260 ~ 280

40

1.25

1.0

N Female

-20 ~ +65

5o0370380309339NK

309 ~ 339

40

1.25

0.8

N Female

-20 ~ +65

5o0370380350370NK

350 ~ 370

42

1.2

0.7

N Female

-20 ~ +65

5o0370380380460SK

380 ~ 460

36

1.3

1.0

SMA Female

-20 ~ +65

5o0370380390410SK

390 ~ 410

46

1.2

0.6

SMA Female

-30 ~ +70

5o0370380400470SK

400 ~ 470

40

1.25

0.8

SMA Female

-30 ~ +70

5o0370380413419SK

413 ~ 419

60

1.15

0.6

SMA Female

-30 ~ +70

5o0370380413419NKNJ

413 ~ 419

60

1.15

0.6

N Female to N Male

-30 ~ +70

5o0370380419425NKNJ

419 ~ 425

60

1.15

0.6

N Female to N Male

-30 ~ +70

5o0370380450520NK

450 ~ 520

40

1.25

0.8

N Female

-20 ~ +65

5o0370380600800SK

600 ~ 800

38

1.25

1.0

SMA Female

-20 ~ +65

5o0370380700900SK

700 ~ 900

40

1.25

0.8

SMA Female

-30 ~ +70

5o03703807001000SK

700 ~ 1000

32

1.4

1.0.2

SMA Female

-20 ~ +65

5o0370380770860SK

770 ~ 860

46

1.2

0.6

SMA Female

-30 ~ +70

5o0370380860872SK

860 ~ 872

60

1.15

0.5

SMA Female

-20 ~ +65

5o0370380900930SK

900 ~ 930

60

1.15

0.4

SMA Female

-40 ~ +85

5o037038010001300NK

1000 ~ 1300

40

1.25

0.8

N Female

-30 ~ +70

5o037038010001700NK

1000 ~ 1700

30

1.45

1.0

N Female

-30 ~ +70

5o037038012961298NK

1296 ~ 1298

50

1.15

0.6

N Female

-40 ~ +85

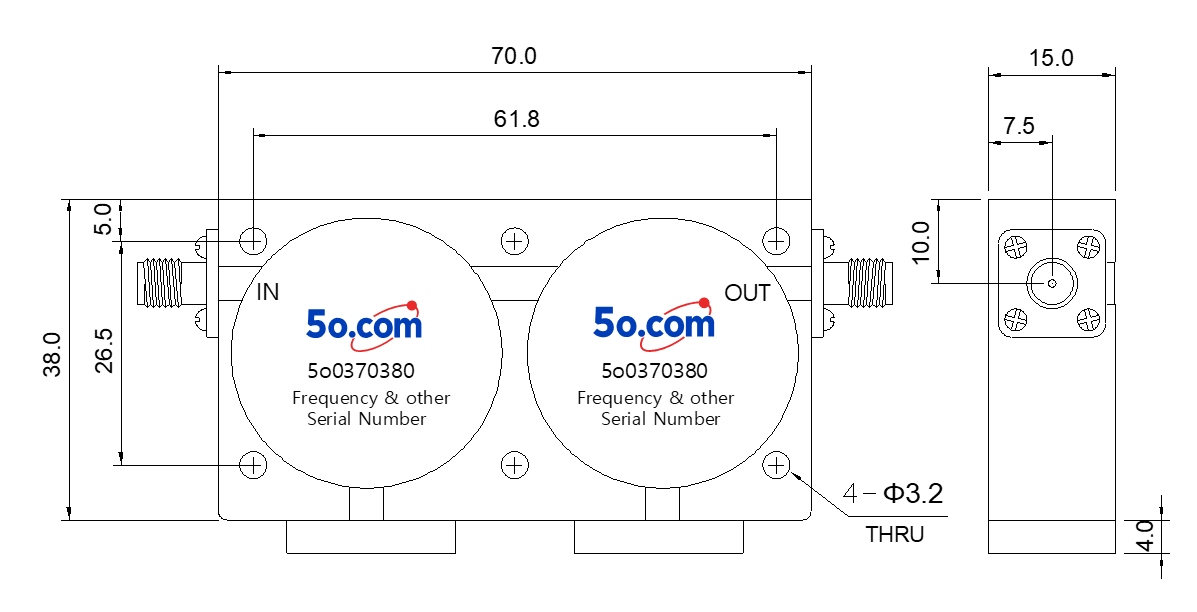

Dimension

70*38*15mm

Forward   Power

300W

Reverse   Power

30W

Connector   Type

N, SMA (Female/Male)

Storage Temperature

-55℃~+125℃

Impedance

50Ω
