Part Number

Frequency Range
   (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o0364320800900NK

800 ~ 900

40

1.25

0.8

N Female

-30 ~ +70

5o0364320925960SK

925 ~ 960

45

1.2

0.6

SMA Female

-30 ~ +70

5o03643209601215NK

960 ~ 1215

40

1.25

0.8

N Female

-30 ~ +70

5o036432013501500SK

1350 ~ 1500

40

1.25

0.6

SMA Female

-40 ~ +85

5o036432014501700SK

1450 ~ 1700

40

1.25

0.8

SMA Female

-20 ~ +65

5o036432016001700SK

1600 ~ 1700

50

1.15

0.5

SMA Female

-30 ~ +70

5o036432016002000NK

1600 ~ 2000

36

1.3

1.0

N Female

-20 ~ +65

5o036432017002200SK

1700 ~ 2200

36

1.3

1.0

SMA Female

-30 ~ +70

5o036432017101785SK

1710 ~ 1785

50

1.15

0.6

SMA Female

-30 ~ +70

5o036432018002400SK

1800 ~ 2400

36

1.3

1.0

SMA Female

-40 ~ +70

5o036432020002500SK

2000 ~ 2500

40

1.25

0.8

SMA Female

-40 ~ +70

5o036432020002700SK

2000 ~ 2700

36

1.3

1.0

SMA Female

-40 ~ +70

5o036432021102170SK

2110 ~ 2170

50

1.15

0.6

SMA Female

-40 ~ +85

5o036432023002500SK

2300 ~ 2500

45

1.2

0. 6

SMA Female

-40 ~ +85

5o036432024002600SK

2400 ~ 2600

45

1.2

0. 6

SMA Female

-40 ~ +85

5o036432025002700SK

2500 ~ 2700

45

1.2

0.6

SMA Female

-40 ~ +85

5o036432025002700NK

2500 ~ 2700

45

1.2

0.6

N Female

-40 ~ +85

5o036432029003100SK

2900 ~ 3100

40

1.3

0.7

SMA Female

-40 ~ +85

5o036432031003500SK

3100 ~ 3500

40

1.3

0.7

SMA Female

-40 ~ +85

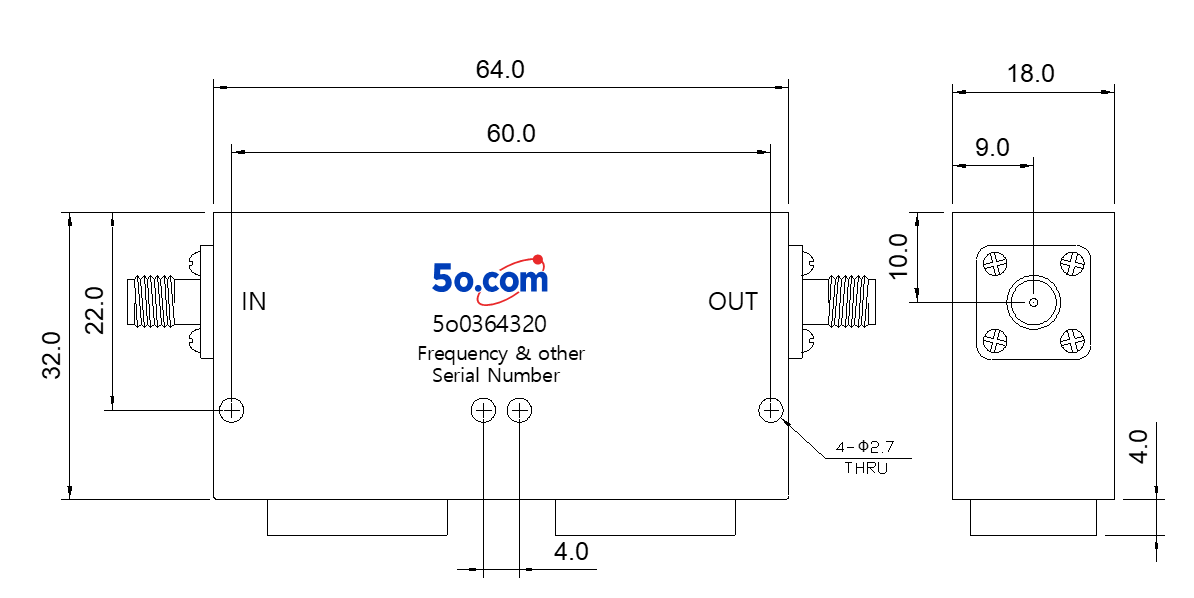

Dimension

64*32*18mm

Forward   Power

100W

Reverse   Power

30W

Connector   Type

N, SMA(Female/Male)

Storage Temperature

-55℃~+125℃

Impedance

50Ω
