    Dual Junction Coaxial Isolator 4.0 ~ 8.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector Type

    5o034222048SK

    4.0 ~ 8.0

    36

    1.3

    1.0

    SMA Female

    5o034222048NK

    4.0 ~ 8.0

    36

    1.3

    1.0

    SMA Male to SMA Female

     Basic Specifications

    Dimension

    42*22.5*15mm

    Impedance

    50Ω

    Forward Power

    100W

    Operating Temperature

    -55 ~ +85℃

    Reverse Power

    30W

    Storage Temperature

    -55~+125℃

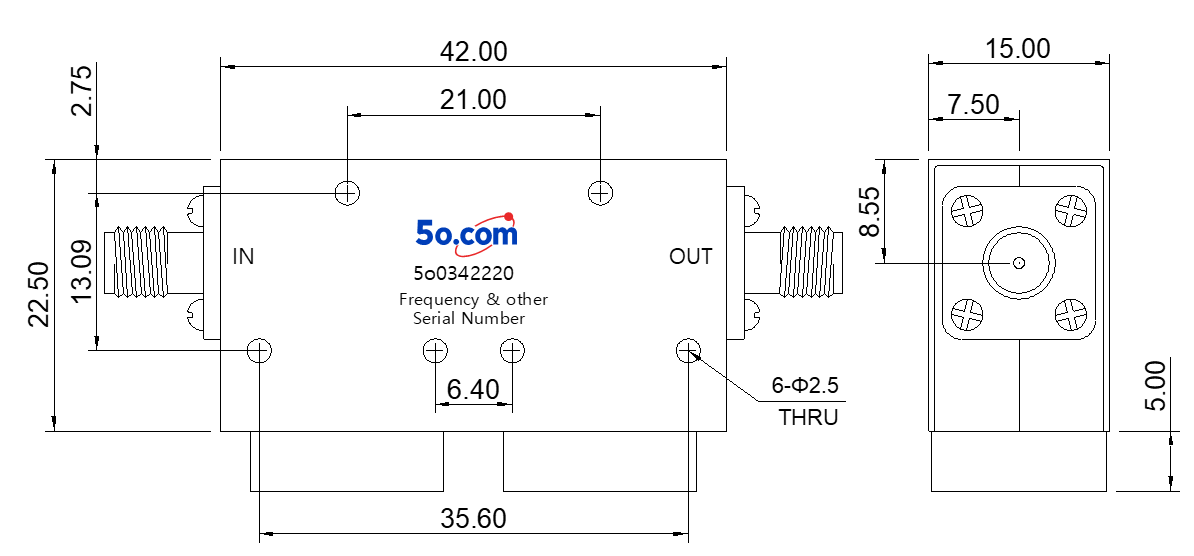

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
