    Dual Junction Coaxial Isolator 3.5 ~7.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o03392804247SK

    4.2 ~ 4.7

    40

    1.25

    0.7

    SMA Female

    -40 ~ +85

    5o0339280445SK

    4.4 ~ 5.0

    40

    1.25

    0.8

    SMA Female

    -40 ~ +85

    5o03392804951SK

    4.9 ~ 5.1

    45

    1.2

    0.7

    SMA Female

    -40 ~ +85

    5o0339280555SK

    5.0 ~ 5.5

    40

    1.25

    0.8

    SMA Female

    -40 ~ +85

    5o03392805459SK

    5.4 ~ 5.9

    45

    1.2

    0.8

    SMA Female

    -40 ~ +85

    5o0339280566SK

    5.6 ~ 6.0

    45

    1.2

    0.6

    SMA Female

    -40 ~ +85

    5o03392805765SK

    5.7 ~ 6.5

    40

    1.25

    1

    SMA Female

    -40 ~ +85

    5o033928067SK

    6.0 ~ 7.0

    40

    1.25

    0.8

    SMA Female

    -40 ~ +85

    Basic Specifications

    Dimension

    39*28*15mm

    Forward Power

    60W

    Reverse Power

    5W

    Connector Type

    SMA(Female/Male)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

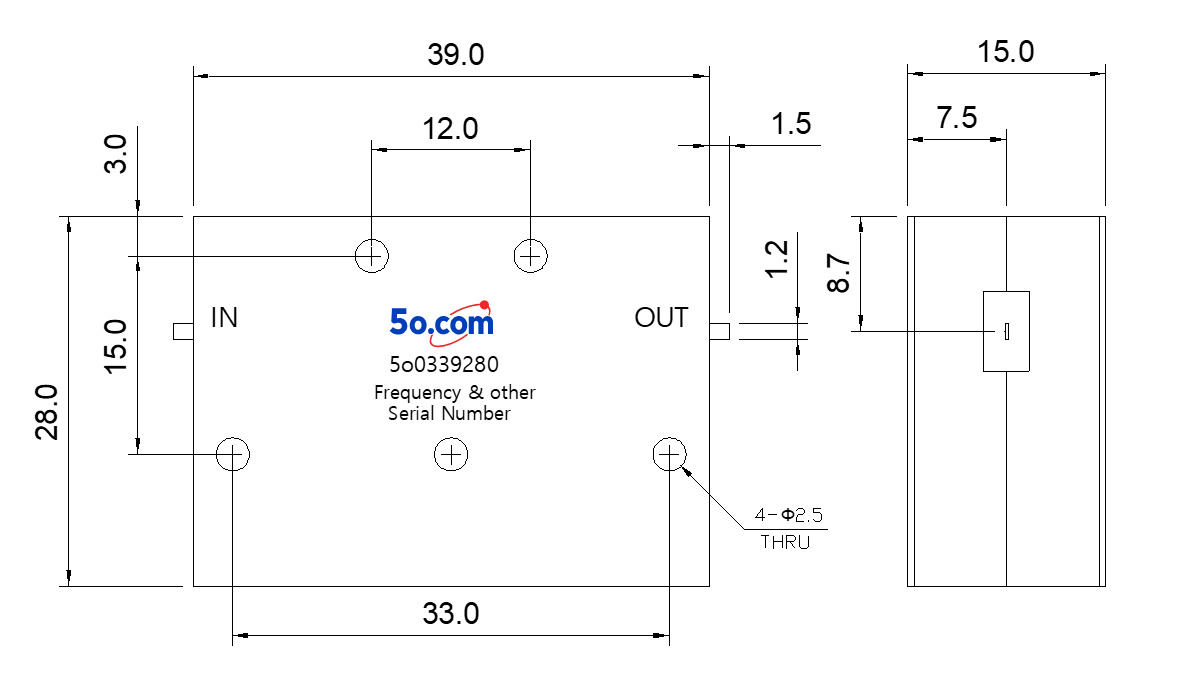

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
