    Dual Junction Coaxial Isolator 130 ~ 900MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency
      Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o03112560145150SK

    136 ~ 150

    36

    1.3

    1.0

    SMA Female

    -10 ~ +60

    5o03112560150155NK

    150 ~ 155

    40

    1.25

    1.0

    N Female

    -10 ~ +70

    5o03112560150170SK

    150 ~ 170

    36

    1.3

    1.2

    SMA Female

    -10 ~ +70

    5o03112560168171SK

    168 ~ 171

    46

    1.2

    0.8

    SMA Female

    -30 ~ +70

    5o03112560170200NK

    170 ~ 200

    36

    1.3

    1.4

    N Female

    -30 ~ +70

    5o03112560180220SK

    180 ~ 220

    36

    1.3

    1.0

    SMA Female

    -30 ~ +70

    5o03112560192232SK

    192 ~ 232

    40

    1.25

    0.8

    SMA Female

    -30 ~ +70

    5o0311256019752075SJSK

    197.5~207.5

    46

    1.2

    0.8

    SMA Male to SMA Female

    -30 ~ +70

    5o03112560200250SK

    200 ~ 250

    40

    1.25

    1.2

    SMA Female

    -30 ~ +70

    5o03112560230250NK

    230 ~ 250

    46

    1.2

    0.6

    N Female

    -30 ~ +70

    5o03112560250300SK

    250 ~ 300

    40

    1.25

    0.8

    SMA Female

    -30 ~ +70

    5o03112560500750SK

    500 ~ 750

    32

    1.4

    1.0

    SMA Female

    -30 ~ +70

    5o03112560600900SK

    600 ~ 900

    34

    1.35

    1.0

    SMA Female

    -30 ~ +70

    Basic Specifications

    Dimension

    112*56*15mm

    Forward   Power

    100W

    Reverse   Power

    30W

    Connector   Type

    N, SMA (Female/Male)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

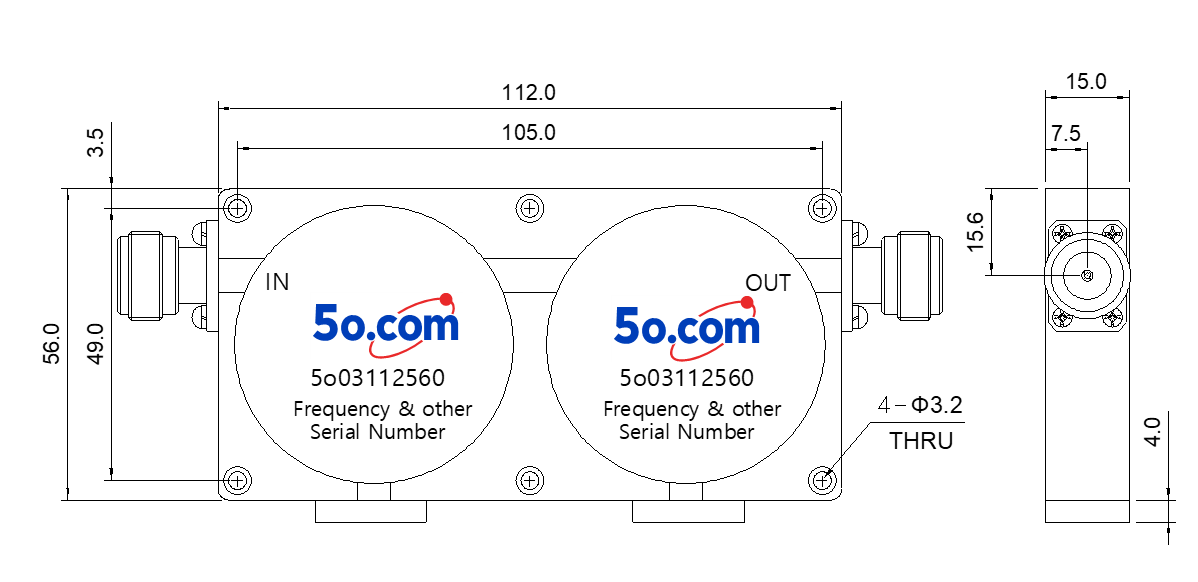

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
