    Dual Junction Drop in Isolator 200 ~ 3600MHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0250250210220

    210 ~ 220

    36

    1.3

    1.2

    TAB

    -40 ~ +85

    5o0250250220020

    220 ~ 230

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o0250250250270

    250 ~ 270

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o0250250300320

    300 ~ 320

    40

    1.25

    1.0

    TAB

    -40 ~ +85

    5o0250250350370

    350 ~ 370

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o0250250380460

    380 ~ 460

    34

    1.35

    1.0

    TAB

    -40 ~ +85

    5o0250250400470

    400 ~ 470

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o0250250410425

    410 ~ 425

    46

    1.15

    0.6

    TAB

    -40 ~ +85

    5o0250250430470

    430 ~ 470

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o0250250450520

    450 ~ 520

    40

    1.25

    1.0

    TAB

    -40 ~ +85

    5o0250250490510

    490 ~ 510

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o0250250600700

    600 ~ 700

    40

    1.2

    0.6

    TAB

    -40 ~ +85

    5o0250250700803

    700 ~ 803

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o02502508001000

    800 ~ 1000

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o0250250860960

    860 ~ 960

    40

    1.25

    0.6

    TAB

    -40 ~ +85

    5o0250250869894

    869 ~ 894

    50

    1.15

    0.4

    TAB

    -40 ~ +85

    5o0250250925960

    925 ~ 960

    50

    1.15

    0.4

    TAB

    -40 ~ +85

    5o02502509501250

    950 ~ 1250

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o025025012001400

    1200 ~ 1400

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o025025015001700

    1500 ~ 1700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o025025017102170

    1710 ~ 2170

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o025025018051880

    1805 ~ 1880

    50

    1.15

    0.4

    TAB

    -40 ~ +85

    5o025025019201990

    1920 ~ 1990

    50

    1.15

    0.4

    TAB

    -40 ~ +85

    5o025025020002500

    2000 ~ 2500

    40

    1.25

    1.0

    TAB

    -40 ~ +85

    5o025025002002500

    2300 ~ 2500

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o025025002002700

    2300 ~ 2700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o025025024002600

    2400 ~ 2600

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o025025024962690

    2496 ~ 2690

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o025025025002700

    2500 ~ 2700

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o025025027003100

    2700 ~ 3100

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o025025030003600

    3000 ~ 3600

    40

    1.25

    0.6

    TAB

    -40 ~ +85

     Basic Specifications

    Dimension

    50.8*25.4*10.5mm

    Forward   Power

    200W

    Reverse   Power

    30W

    Connector   Type

    TAB

    Storage   Temperature

    -55℃~+125℃

    Impedance

    50Ω

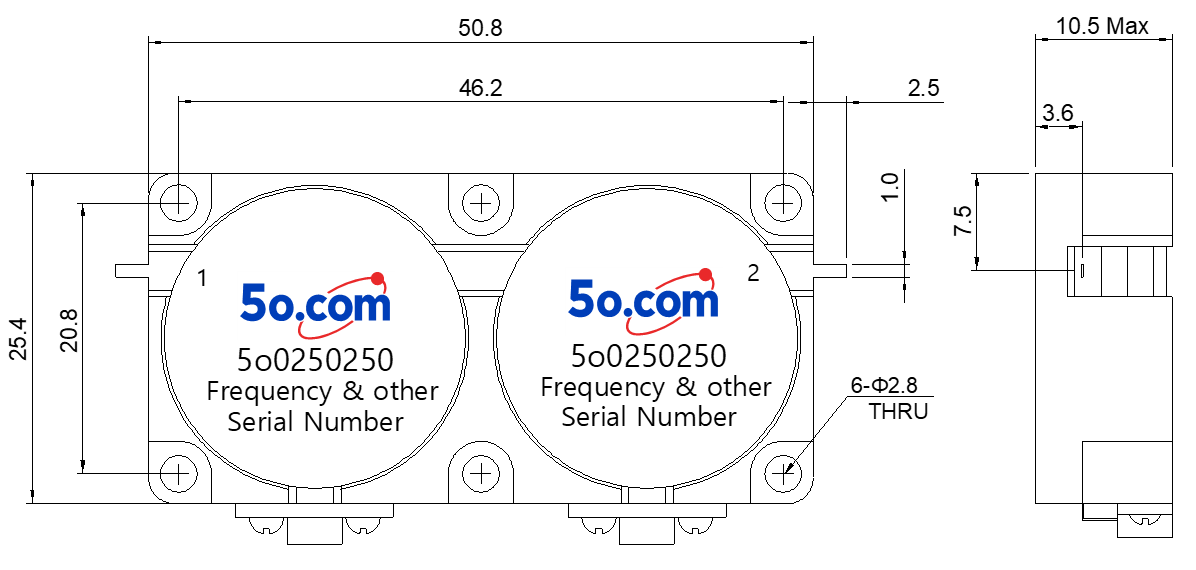

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
