    Dual Junction Drop in Isolator 0.6 ~ 5.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0238190617698

    617 ~ 698

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o0238190703803

    703 ~ 803

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o0238190824894

    824 ~ 894

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o0238190860960

    860 ~ 960

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o0238190925960

    925 ~ 960

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819010701210

    1070 ~ 1210

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o023819012001400

    1200 ~ 1400

    44

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819012501450

    1250 ~ 1450

    46

    1.2

    0.5

    TAB

    -40 ~ +85

    5o023819014501550

    1450 ~ 1550

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819015001700

    1500 ~ 1700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819017102170

    1710 ~ 2170

    32

    1.4

    1.2

    TAB

    -40 ~ +85

    5o023819018051880

    1805 ~ 1880

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o023819019201990

    1920 ~ 1990

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o023819020002400

    2000 ~ 2400

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o023819021102170

    2110 ~ 2170

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o023819002002500

    2300 ~ 2500

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819024002600

    2400 ~ 2600

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819024962690

    2496 ~ 2690

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819025002700

    2500 ~ 2700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819027003100

    2700 ~ 3100

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819027003500

    2700 ~ 3500

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o023819031503250

    3150 ~ 3250

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o023819033003600

    3300 ~ 3600

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819035004500

    3500 ~ 4500

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o023819036003800

    3600 ~ 3800

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819039004200

    3900 ~ 4200

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o023819039004500

    3900 ~ 4500

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o023819044004500

    4000 ~ 4500

    40

    1.2

    0.7

    TAB

    -40 ~ +85

    5o023819042004700

    4200 ~ 4700

    40

    1.25

    0.7

    TAB

    -40 ~ +85

    5o023819044005000

    4400 ~ 5000

    40

    1.25

    0.8

    TAB

    -40 ~ +85

     Basic Specifications

    Dimension

    38*19*8.6mm

    Forward   Power

    100W

    Reverse   Power

    3W

    Connector   Type

    TAB

    Storage   Temperature

    -55℃~+125℃

    Impedance

    50Ω

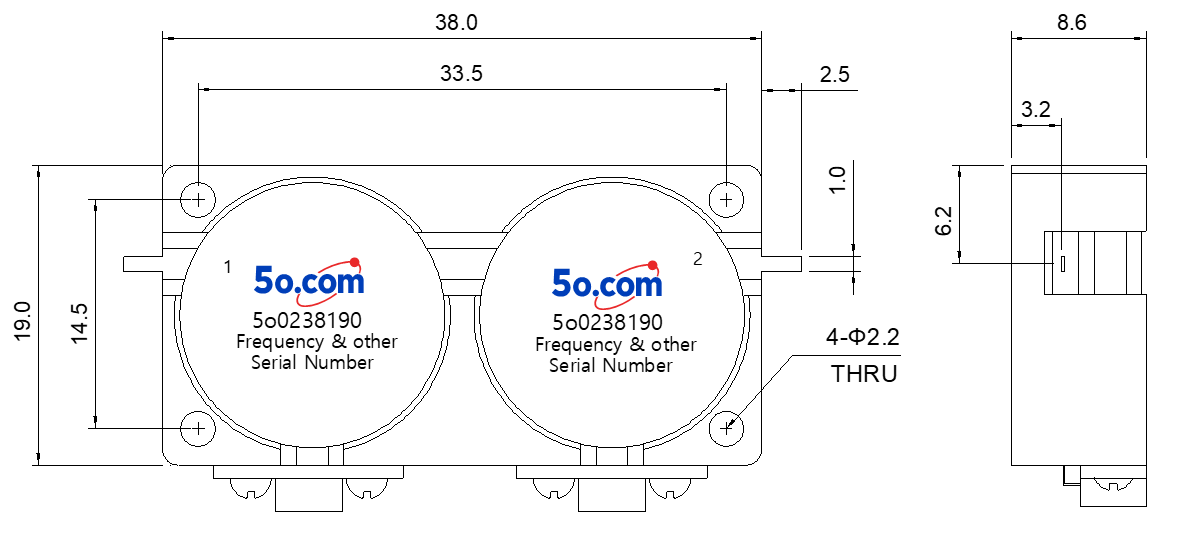

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
