    Dual Junction Drop in Isolator 4.0 ~ 7.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o0224200455

    4.5 ~ 5.0

    40

    1.25

    0.8

    TAB

    5o02242004752

    4.7 ~ 5.2

    40

    1.25

    0.8

    TAB

    5o0224200558

    5.0 ~ 5.8

    40

    1.25

    0.8

    TAB

    5o022420056

    5.0 ~ 6.0

    36

    1.3

    1.0

    TAB

    5o02242005259

    5.2 ~ 5.9

    40

    1.2

    0.8

    TAB

    5o02242005459

    5.4 ~ 5.9

    45

    1.2

    0.8

    TAB

    5o0224200556

    5.6 ~ 6.0

    45

    1.2

    0.6

    TAB

    5o02242005759

    5.7 ~ 5.9

    45

    1.2

    0.6

    TAB

    5o02242005765

    5.7 ~ 6.5

    40

    1.25

    1.0

    TAB

    5o022420067

    6.0 ~ 7.0

    45

    1.2

    0.7

    TAB

    5o0224200635655

    6.35 ~ 6.55

    45

    1.2

    0.6

    TAB

    Basic Specifications

    Dimension

    24*20*8mm

    Impedance

    50Ω

    Forward Power

    60W

    Operating Temperature

    -40 ~ +85℃

    Reverse Power

    5W

    Storage Temperature

    -55~+125℃

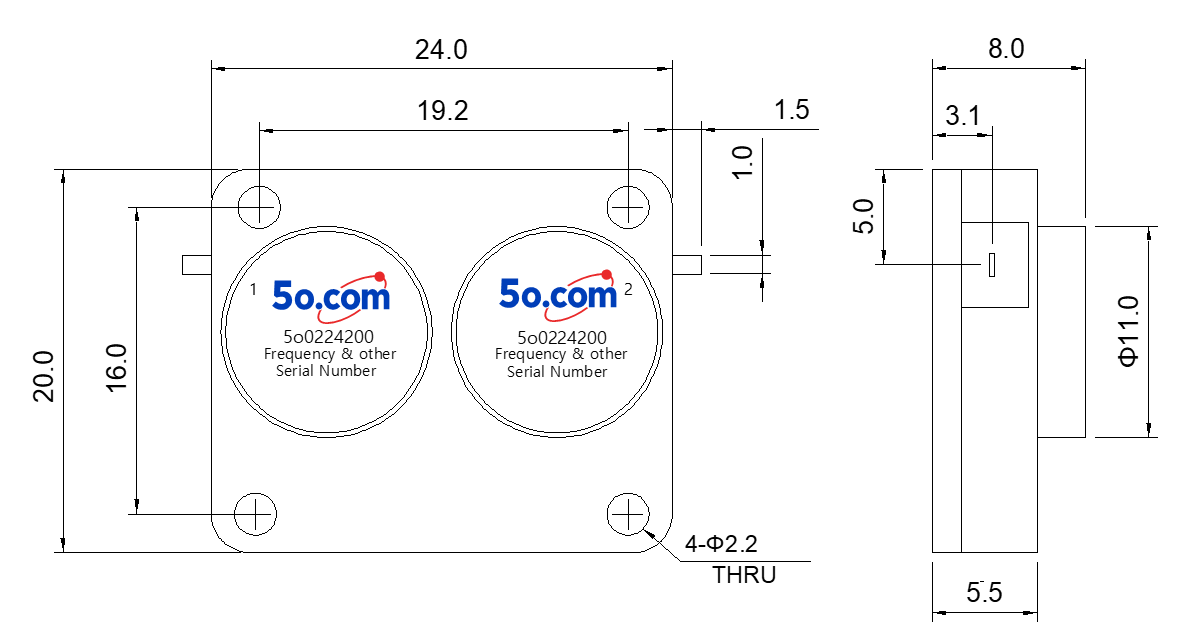

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
