Part Number

Frequency Range (GHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o0217160555

5.0 ~ 5.5

36

1.3

1.0

TAB

-40 ~ +85

5o02171605458

5.4 ~ 5.8

36

1.3

1.0

TAB

-40 ~ +85

5o02171605759

5.7 ~ 5.9

40

1.25

0.7

TAB

-40 ~ +85

5o02171605862

5.8 ~ 6.2

40

1.25

1.0

TAB

-40 ~ +85

5o021716068

6.0 ~ 8.0

36

1.3

1.2

TAB

-40 ~ +85

5o021716079

7.0 ~ 9.0

36

1.3

1.0

TAB

-40 ~ +85

5o02171607195

7.1 ~ 9.5

36

1.3

1.2

TAB

-55 ~ +85

5o02171607984

7.9 ~ 8.4

46

1.2

0.6

TAB

-55 ~ +85

5o0217160812

8.0 ~ 12.0

36

1.3

1.0

TAB

-55 ~ +85

5o02171608595

8.5 ~ 9.5

46

1.2

0.6

TAB

-55 ~ +85

5o0217160910

9.0 ~ 10.0

46

1.2

0.6

TAB

-55 ~ +85

5o02171601011

10.0 ~ 11.0

46

1.2

0.6

TAB

-55 ~ +85

5o02171601013

10.0 ~ 13.0

40

1.25

1.0

TAB

-55 ~ +85

5o02171601015

10.0 ~ 15.0

36

1.35

1.0

TAB

-55 ~ +85

5o0217160115185

11.5 ~ 18.5

32

1.45

1.4

TAB

-55 ~ +85

5o02171601218

12.0 ~ 18.0

36

1.35

1.2

TAB

-55 ~ +85

5o02171601375145

13.75 ~ 14.5

46

1.2

0.6

TAB

-55 ~ +85

5o0217160138178

13.8 ~ 17.8

36

1.3

1.0

TAB

-55 ~ +85

5o0217160155165

15.5 ~ 16.5

40

1.25

1.0

TAB

-55 ~ +85

5o02171601618

16.0 ~ 18.0

40

1.25

1.2

TAB

-55 ~ +85

5o02171601820

18.0 ~ 20.0

40

1.25

1.2

TAB

-55 ~ +85

5o0217160192212

19.2 ~ 21.2

36

1.3

1.2

TAB

-55 ~ +85

5o02171602123

21.0 ~ 23.0

36

1.3

1.2

TAB

-55 ~ +85

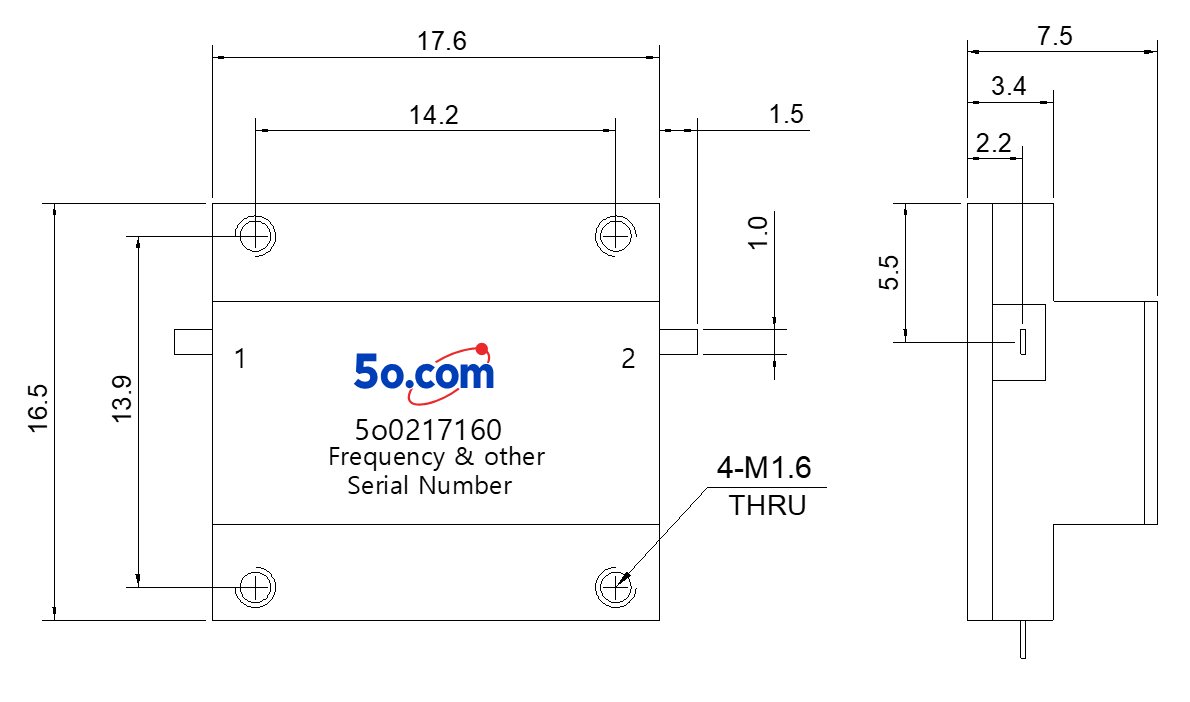

Dimension

17.6*16.5*7.5mm

Forward   Power

30W

Reverse   Power

5W

Connector   Type

TAB

Storage   Temperature

-55℃~+125℃

Impedance

50Ω
