    Dual Junction Drop in Isolator 10 ~55MHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o021608002530

    25 ~ 30

    24

    1.45

    7.0

    TAB

    +10 ~ +60

    5o021608002628

    26 ~ 28

    30

    1.45

    6.0

    TAB

    +10 ~ +60

    5o02160800285305

    28.5 ~ 30.5

    32

    1.4

    5.6

    TAB

    +10 ~ +60

    5o021608003032

    30 ~ 32

    32

    1.4

    3.6

    TAB

    +10 ~ +60

    5o021608003035

    30 ~ 35

    32

    1.4

    6.0

    TAB

    +10 ~ +60

    5o021608003545

    35 ~ 45

    40

    1.4

    5.0

    TAB

    +10 ~ +60

    5o021608004450

    44 ~ 50

    40

    1.25

    2.4

    TAB

    25±5

    34

    1.35

    3.0

    +20 ~ +60

    Basic Specifications

    Dimension

    160*80*28mm

    Impedance

    50Ω

    Forward Power

    100W

    Connector Type

    TAB

    Reverse Power

    50W

    Storage Temperature

    -55~+125℃

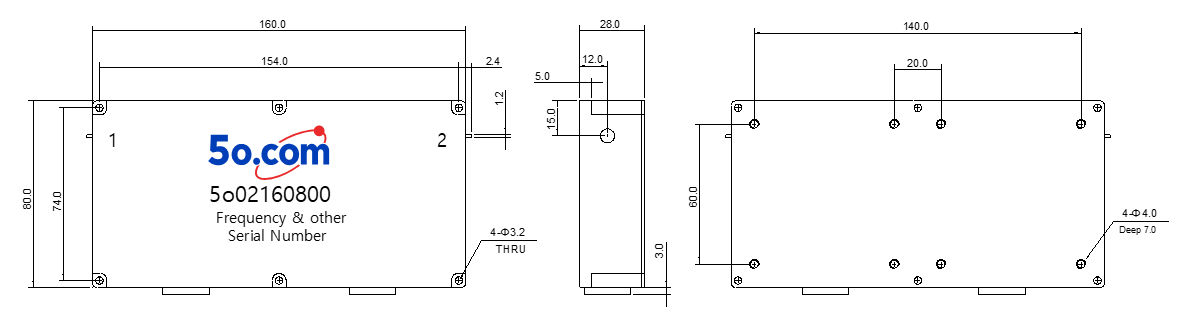

    Overall dimensions(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
