    Dual Junction Drop in Isolator 45 ~ 270MHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o021206004550

    45 ~ 50

    36

    1.3

    3.0

    TAB

    -10 ~ +65

    5o021206004555

    45 ~ 55

    36

    1.3

    3.6

    TAB

    -10 ~ +65

    5o021206005075

    50 ~ 75

    40

    1.25

    3.6

    TAB

    -10 ~ +65

    5o021206005575

    55 ~ 75

    40

    1.25

    2.5

    TAB

    -10 ~ +65

    5o021206006065

    60 ~ 65

    40

    1.25

    2.0

    TAB

    -10 ~ +65

    5o021206006570

    65 ~ 70

    40

    1.25

    2.0

    TAB

    -10 ~ +65

    5o021206006888

    68 ~ 88

    36

    1.3

    2.5

    TAB

    -20 ~ +65

    5o021206007085

    70 ~ 85

    40

    1.25

    1.6

    TAB

    -20 ~ +65

    5o021206007090

    70 ~ 90

    40

    1.25

    2.0

    TAB

    -20 ~ +65

    5o0212060080120

    80 ~ 120

    36

    1.3

    2.0

    TAB

    0 ~ +65

    5o0212060085135

    85 ~ 135

    36

    1.3

    2.4

    TAB

    -10 ~ +65

    5o0212060087108

    87 ~ 108

    40

    1.25

    1.2

    TAB

    -20 ~ +65

    5o0212060087108P200

    87 ~ 108

    40

    1.25

    1.2

    TAB

    -20 ~ +65

    5o0212060088138

    88 ~ 138

    36

    1.3

    2.0

    TAB

    -10 ~ +65

    5o02120600100130

    100 ~ 130

    40

    1.25

    1.2

    TAB

    -30 ~ +70

    5o02120600100150

    100 ~ 150

    40

    1.25

    2.0

    TAB

    -10 ~ +65

    5o02120600108118

    108 ~ 118

    45

    1.2

    1.0

    TAB

    -30 ~ +70

    5o02120600108118P200

    108 ~ 118

    45

    1.2

    1.0

    TAB

    -30 ~ +70

    5o02120600112156

    112 ~ 156

    40

    1.25

    1.6

    TAB

    -30 ~ +70

    5o02120600118137

    118 ~ 137

    45

    1.2

    1.0

    TAB

    -30 ~ +70

    5o02120600118137P200

    118 ~ 137

    45

    1.2

    1.0

    TAB

    -30 ~ +70

    5o02120600130180

    130 ~ 180

    40

    1.25

    1.2

    TAB

    -30 ~ +70

    5o02120600136174

    136 ~ 174

    44

    1.2

    1.0

    TAB

    -30 ~ +70

    5o02120600136174P200

    136 ~ 174

    44

    1.2

    1.0

    TAB

    -30 ~ +70

    5o02120600148174P150

    148 ~ 174

    50

    1.15

    1.0

    TAB

    -30 ~ +70

    5o02120600150200

    150 ~ 200

    40

    1.25

    1.2

    TAB

    -30 ~ +70

    5o02120600150225

    150 ~ 225

    36

    1.3

    1.8

    TAB

    -30 ~ +70

    5o02120600170200

    170 ~ 200

    40

    1.25

    1.0

    TAB

    -30 ~ +70

    5o02120600170200P200

    170 ~ 200

    40

    1.25

    1.0

    TAB

    -30 ~ +70

    5o02120600180220

    180 ~ 220

    40

    1.25

    1.0

    TAB

    -30 ~ +70

    5o02120600200270

    200 ~ 270

    40

    1.25

    1.4

    TAB

    -30 ~ +70

     Basic Specifications

    Dimension

    120*60*28mm

    Forward   Power

    100W

    Reverse   Power

    50W

    Connector   Type

    TAB

    Storage   Temperature

    -55℃~+125℃

    Impedance

    50Ω

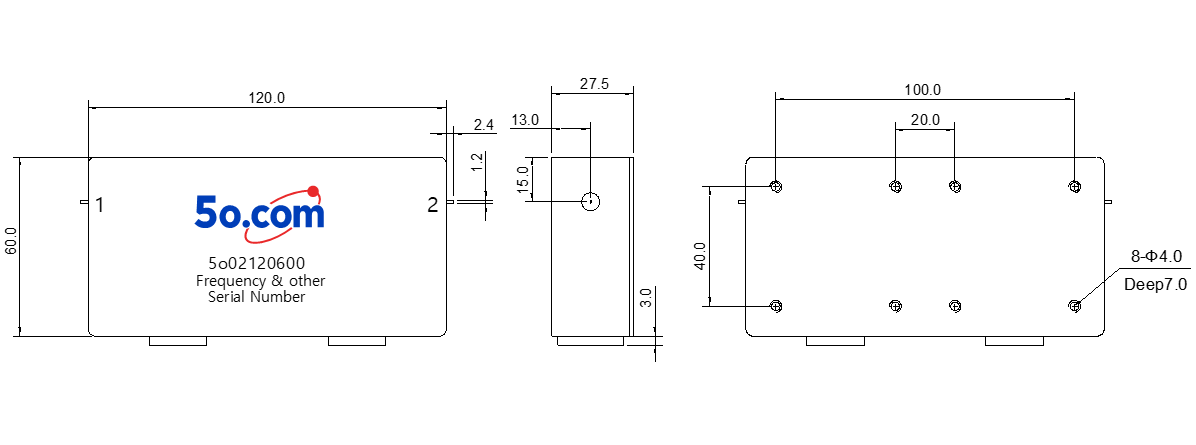

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
