Dual Junction Drop in Isolator 130 to 900MHz 5o02112560

Dual Junction Drop in Isolator 130 ~ 900MHz

Application

▶RF power amplifier protection.

▶Digital, Satellite, Mobile Communication.

▶Medical, Communication, Security.

▶Military, Space and Commercial applications.

RF Characteristics

Part Number	Frequency Range (MHz)	Isolation Min(dB)	VSWR Max	Insertion Loss Max(dB)	Connector Type	Temp.(°C)
5o02112560145150	136 ~ 150	36	1.3	1.0	TAB	-10 ~ +60
5o02112560150155	150 ~ 155	40	1.25	1.0	TAB	-10 ~ +70
5o02112560150170	150 ~ 170	36	1.3	1.2	TAB	-10 ~ +70
5o02112560168171	168 ~ 171	46	1.2	0.8	TAB	-30 ~ +70
5o02112560170200	170 ~ 200	36	1.3	1.4	TAB	-30 ~ +70
5o02112560180220	180 ~ 220	36	1.3	1.0	TAB	-30 ~ +70
5o02112560192022	192 ~ 232	40	1.25	0.8	TAB	-30 ~ +70
5o0211256019752075	197.5 ~ 207.5	46	1.2	0.8	TAB	-30 ~ +70
5o02112560200250	200 ~ 250	40	1.25	1.2	TAB	-30 ~ +70
5o02112560020250	230 ~ 250	46	1.2	0.6	TAB	-30 ~ +70
5o02112560250300	250 ~ 300	40	1.25	0.8	TAB	-30 ~ +70
5o02112560500750	500 ~ 750	32	1.4	1.0	TAB	-30 ~ +70
5o02112560600900	600 ~ 900	34	1.35	1.0	TAB	-30 ~ +70

Basic Specifications

Dimension	1125615mm
Forward Power	300W
Reverse Power	30W
Connector Type	TAB
Storage Temperature	-55℃~+125℃
Impedance	50Ω

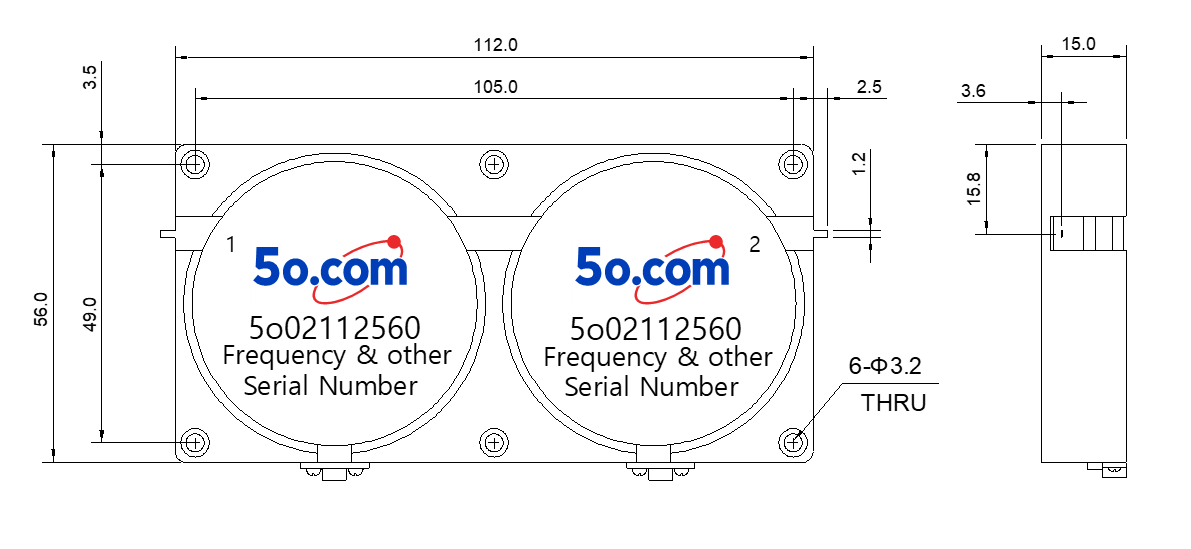

Overall Dimension(mm)

Instructions Tolerances: ±2% unless otherwise stated.

◆It can be dual junction or multiple for high isolation.

◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

◆Only some common frequencies in the table can be produced according to the user's requirements.

◆It supports a one-year standard warranty.
