Part Number

Frequency Range (GHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o018150555

5.0 ~ 5.5

18

1.3

0.5

TAB

-40 ~ +85

5o0181505458

5.4 ~ 5.8

18

1.3

0.5

TAB

-40 ~ +85

5o0181505759

5.7 ~ 5.9

20

1.25

0.35

TAB

-40 ~ +85

5o0181505862

5.8 ~ 6.2

20

1.25

0.5

TAB

-40 ~ +85

5o01815068

6.0 ~ 8.0

18

1.3

0.6

TAB

-40 ~ +85

5o01815079

7.0 ~ 9.0

18

1.3

0.5

TAB

-40 ~ +85

5o0181507195

7.1 ~ 9.5

18

1.3

0.6

TAB

-55 ~ +85

5o0181507984

7.9 ~ 8.4

23

1.2

0.3

TAB

-55 ~ +85

5o018150812

8.0 ~ 12.0

18

1.3

0.5

TAB

-55 ~ +85

5o0181508595

8.5 ~ 9.5

23

1.2

0.3

TAB

-55 ~ +85

5o018150910

9.0 ~ 10.0

23

1.2

0.3

TAB

-55 ~ +85

5o0181501011

10.0 ~ 11.0

23

1.2

0.3

TAB

-55 ~ +85

5o0181501013

10.0 ~ 13.0

20

1.25

0.5

TAB

-55 ~ +85

5o0181501015

10.0 ~ 15.0

18

1.35

0.5

TAB

-55 ~ +85

5o018150115185

11.5 ~ 18.5

16

1.45

0.7

TAB

-55 ~ +85

5o0181501218

12.0 ~ 18.0

18

1.35

0.6

TAB

-55 ~ +85

5o0181501375145

13.75 ~ 14.5

23

1.2

0.3

TAB

-55 ~ +85

5o018150138178

13.8 ~ 17.8

18

1.3

0.5

TAB

-55 ~ +85

5o018150155165

15.5 ~ 16.5

20

1.25

0.5

TAB

-55 ~ +85

5o0181501618

16.0 ~ 18.0

20

1.25

0.6

TAB

-55 ~ +85

5o0181501820

18.0 ~ 20.0

20

1.25

0.6

TAB

-55 ~ +85

5o018150192212

19.2 ~ 21.2

18

1.3

0.6

TAB

-55 ~ +85

5o0181502123

21.0 ~ 23.0

18

1.3

0.6

TAB

-55 ~ +85

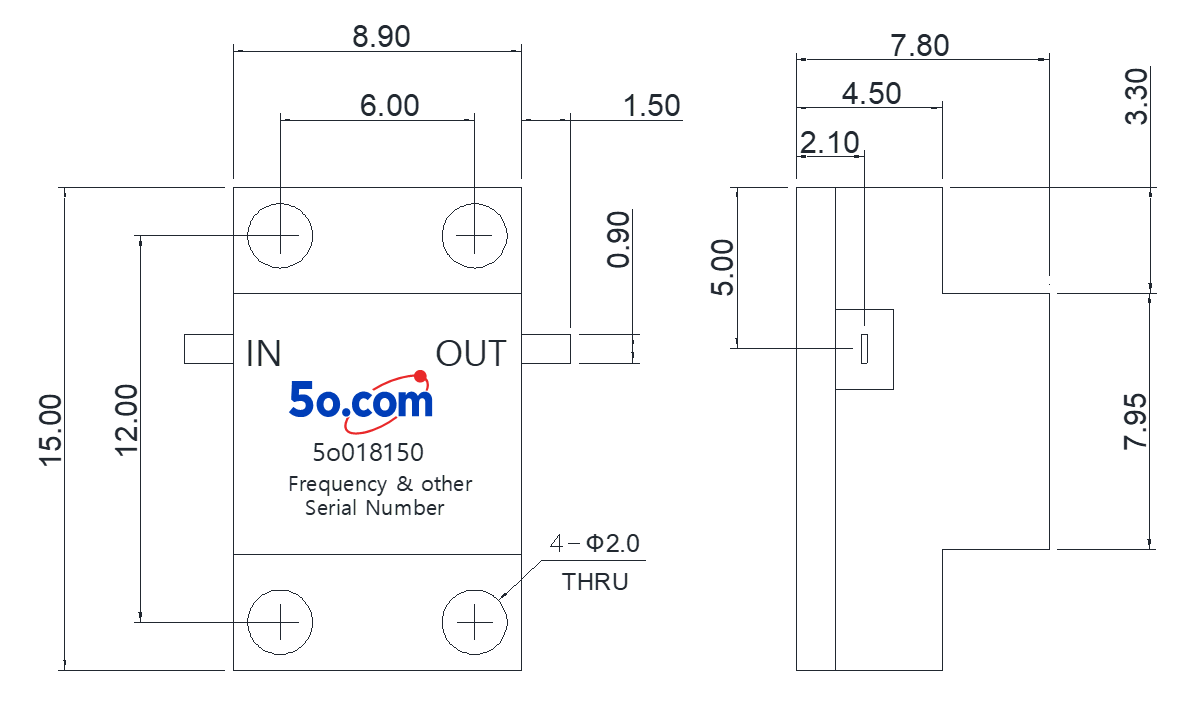

Dimension

8.9*15*7.8mm

Forward   Power

65W

Reverse   Power

5W

Connector   Type

TAB

Storage Temperature

-55℃~+125℃

Impedance

50Ω
