    Drop in Isolator 60 ~ 200MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o018014016265

    62 ~ 65

    16

    1.4

    1.5

    TAB

    0 ~ +70

    5o018014017075

    70 ~ 75

    18

    1.3

    1.2

    TAB

    0 ~ +70

    5o018014017580

    75 ~ 80

    18

    1.3

    0.9

    TAB

    0 ~ +70

    5o018014018125

    81.25

    20

    1.25

    0.6

    TAB

    0 ~ +70

    5o018014018090

    80 ~ 90

    18

    1.3

    0.8

    TAB

    0 ~ +70

    5o018014018595

    85 ~ 95

    18

    1.3

    0.7

    TAB

    0 ~ +70

    5o01801401108118

    108 ~ 118

    18

    1.3

    0.5

    TAB

    0 ~ +70

    5o01801401118137

    118 ~ 137

    18

    1.3

    0.5

    TAB

    0 ~ +70

    5o01801401130150

    130 ~ 150

    20

    1.25

    0.5

    TAB

    0 ~ +70

    5o01801401148174

    148 ~ 174

    20

    1.25

    0.5

    TAB

    0 ~ +70

    5o018014011625

    162.5

    25

    1.15

    0.2

    TAB

    0 ~ +70

    Basic Specifications

    Dimension

    80*140*18mm

    Impedance

    50Ω

    Forward Power

    500W

    Operating Temperature

    0 ~ +70℃

    Reverse Power

    250W

    Storage Temperature

    -55~+125℃

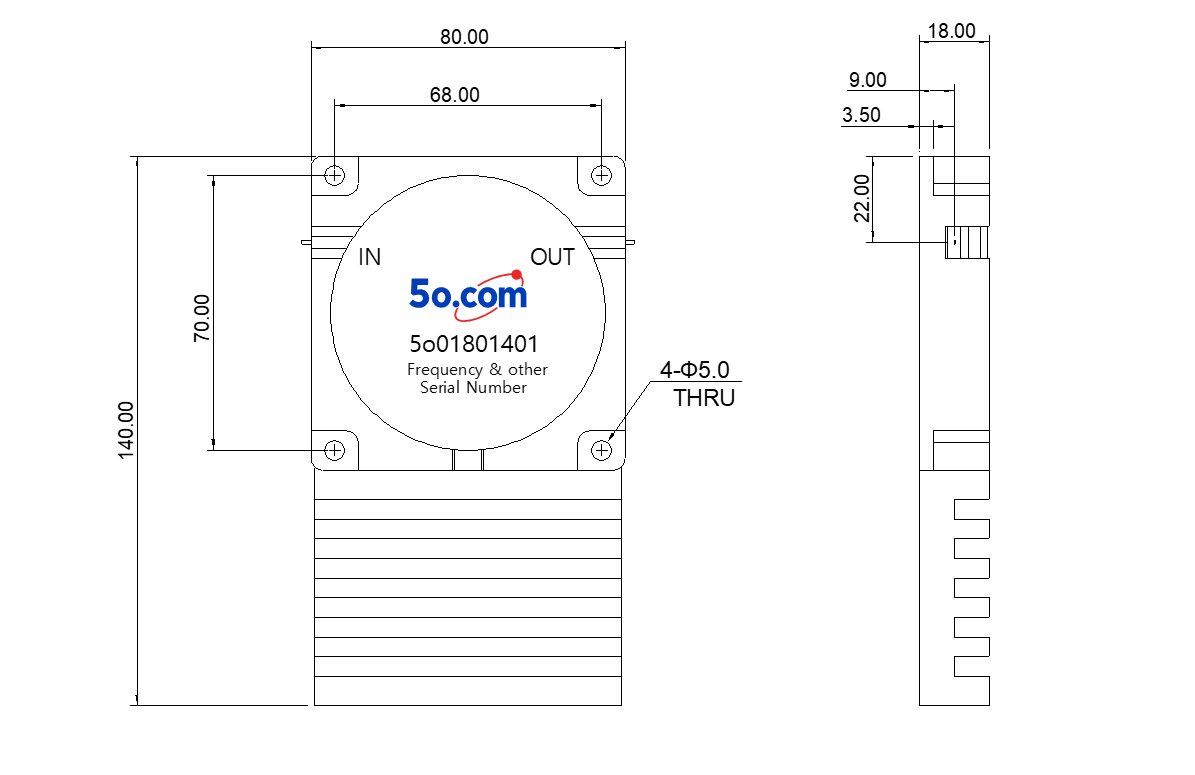

    Overall Dimension(mm)

     5o01801401.pngInstructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
