Drop in Isolator 300 to 1500MHz 500W 5o0153560

Drop in Isolator 300 ~ 1500MHz

Application

▶RF power amplifier protection.

▶Digital, Satellite, Mobile Communication.

▶Medical, Communication, Security.

▶Military, Space and Commercial applications.

RF Characteristics

Part Number	Frequency Range (MHz)	Isolation Min(dB)	VSWR Max	Insertion Loss Max(dB)	Connector Type	Temp.(°C)
5o0153560300350	300 ~ 350	20	1.25	0.5	TAB	-30 ~ +70
5o0153560350400	350 ~ 400	20	1.25	0.5	TAB	-30 ~ +70
5o0153560400500	400 ~ 500	20	1.25	0.4	TAB	-30 ~ +70
5o0153560450500	450 ~ 512	23	1.2	0.3	TAB	-30 ~ +70
5o0153560500590	500 ~ 590	23	1.2	0.3	TAB	-40 ~ +85
5o0153560590710	590 ~ 710	20	1.25	0.4	TAB	-40 ~ +85
5o0153560700900	700 ~ 900	23	1.2	0.3	TAB	-40 ~ +85
5o01535608001000	800 ~ 1000	23	1.2	0.25	TAB	-40 ~ +85
5o01535609001200	900 ~ 1200	23	1.2	0.3	TAB	0 ~ +65
5o01535609601215	960 ~ 1215	23	1.2	0.3	TAB	0 ~ +65
5o015356012001400	1200 ~ 1400	25	1.15	0.2	TAB	0 ~ +65

Basic Specifications

Dimension	535620mm
Forward Power	500W
Reverse Power	30W
Connector Type	TAB
Storage Temperature	-40℃~+125℃
Impedance	50Ω

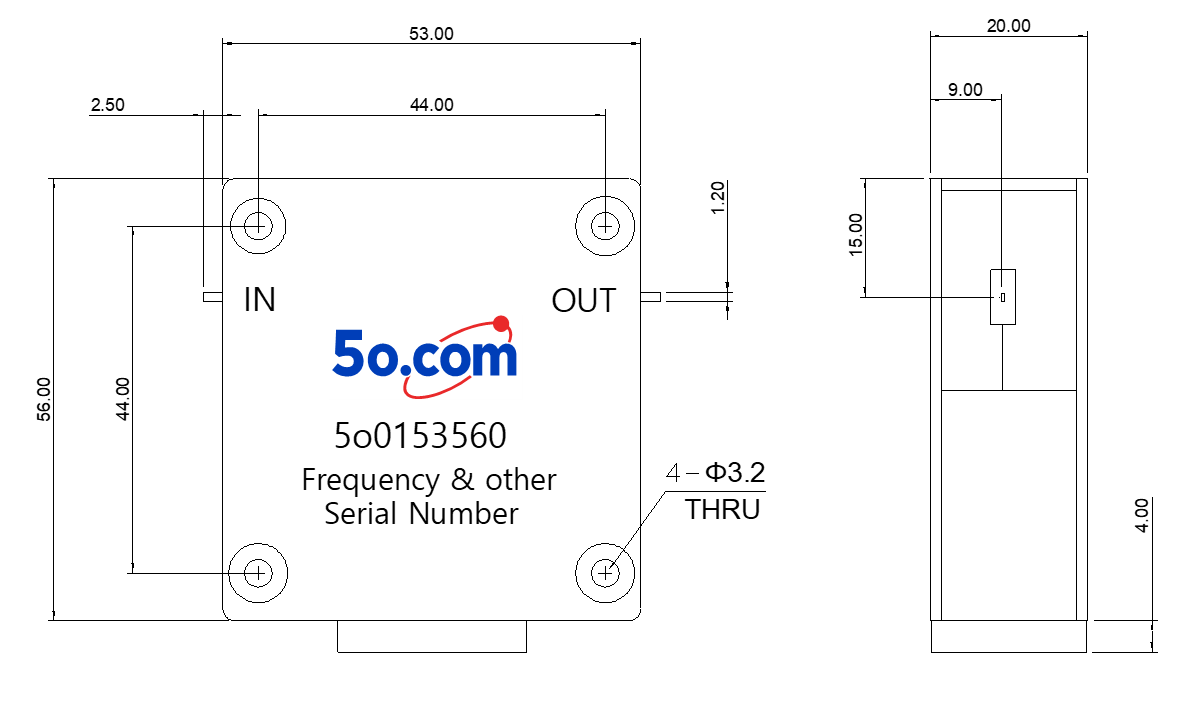

Overall Dimension(mm)

Instructions Tolerances: ±2% unless otherwise stated.

◆It can be dual junction or multiple for high isolation.

◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

◆Only some common frequencies in the table can be produced according to the user's requirements.

◆It supports a one-year standard warranty.
