    Drop in Isolator 6.0 ~ 18.0GHz

    Application

       ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0116210618

    6.0 ~ 18.0

    10

    1.9

    1.5

    TAB

    -30 ~ +70

    Basic Specifications

    Dimension

    16*21.5*14 mm

    Impedance

    50Ω

    Forward Power

    60W

    Operating   Temp

    -30 ~ +70℃

    Reverse Power

    10W

    Storage Temperature

    -55~+125℃

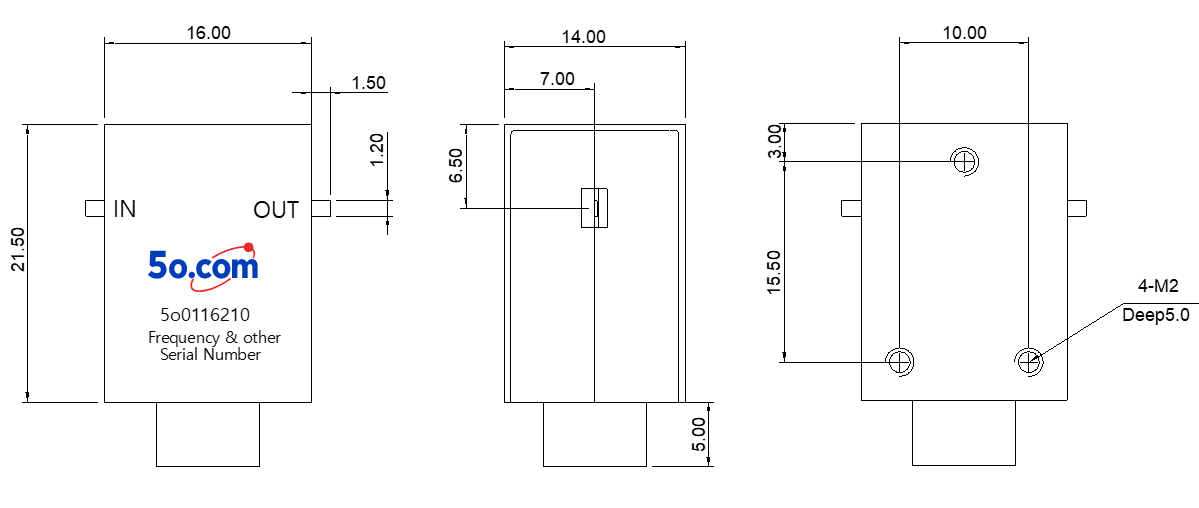

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
