Part Number

Frequency Range (GHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o0112200455

4.5 ~ 5.0

20

1.25

0.4

TAB

-40 ~ +85

5o01122004752

4.7 ~ 5.2

20

1.25

0.4

TAB

-40 ~ +85

5o0112200558

5.0 ~ 5.8

20

1.25

0.4

TAB

-40 ~ +85

5o011220056

5.0 ~ 6.0

18

1.3

0.5

TAB

-40 ~ +85

5o01122005259

5.2 ~ 5.9

20

1.2

0.4

TAB

-40 ~ +85

5o01122005459

5.4 ~ 5.9

23

1.2

0.3

TAB

-40 ~ +85

5o0112200556

5.6 ~ 6.0

23

1.2

0.3

TAB

-40 ~ +85

5o01122005759

5.7 ~ 5.9

23

1.2

0.3

TAB

-40 ~ +85

5o01122005765

5.7 ~ 6.5

20

1.25

0.5

TAB

-40 ~ +85

5o011220067

6.0 ~ 7.0

23

1.2

0.35

TAB

-40 ~ +85

5o0112200635655

6.35 ~ 6.55

23

1.2

0.3

TAB

-55 ~ +85

5o01122007173

7.1 ~ 7.3

23

1.2

0.25

TAB

-40 ~ +85

5o011220078

7.0 ~ 8.0

18

1.3

0.5

TAB

-40 ~ +85

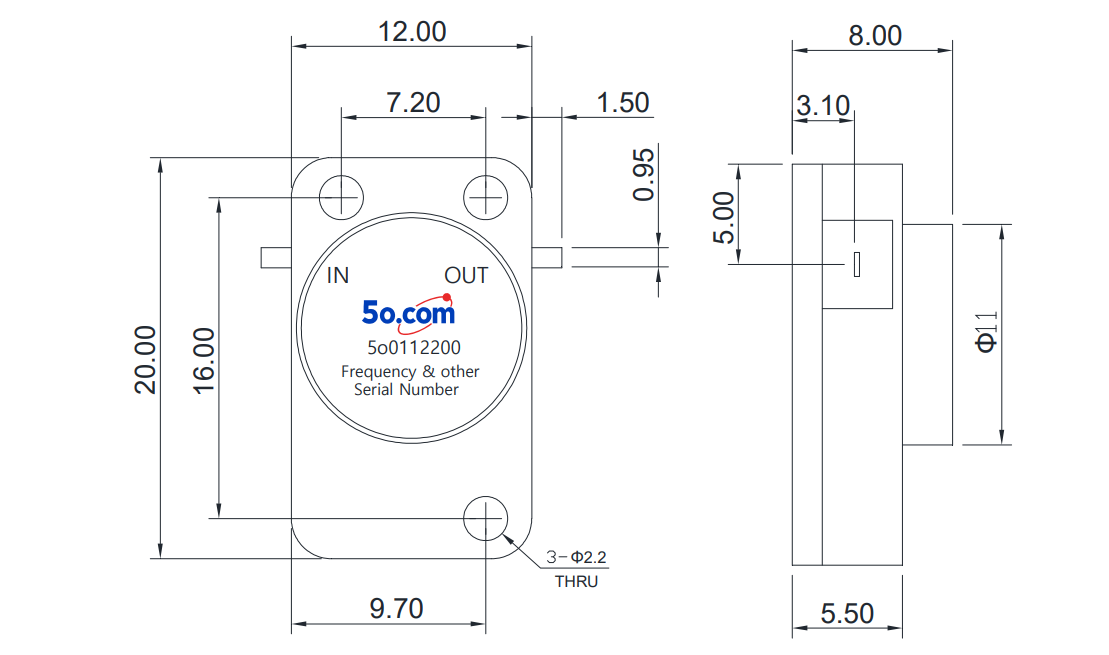

Dimension

12*20*8mm

Forward   Power

60W

Reverse   Power

5W

Connector   Type

TAB

Storage Temperature

-55℃~+125℃

Impedance

50Ω
