    Coaxial Isolator 60 ~ 200MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o008014016265NK

    62 ~ 65

    16

    1.4

    1.5

    N Female

    0 ~ +70

    5o008014017075NK

    70 ~ 75

    18

    1.3

    1.2

    N Female

    0 ~ +70

    5o008014017580NK

    75 ~ 80

    18

    1.3

    0.9

    N Female

    0 ~ +70

    5o008014018125NK

    81.25

    20

    1.25

    0.6

    N Female

    0 ~ +70

    5o008014018090NK

    80 ~ 90

    18

    1.3

    0.8

    N Female

    0 ~ +70

    5o008014018595NK

    85 ~ 95

    18

    1.3

    0.7

    N Female

    0 ~ +70

    5o00801401108118NK

    108 ~ 118

    18

    1.3

    0.5

    N Female

    0 ~ +70

    5o00801401118137NK

    118 ~ 137

    18

    1.3

    0.5

    N Female

    0 ~ +70

    5o00801401130150NK

    130 ~ 150

    20

    1.25

    0.5

    N Female

    0 ~ +70

    5o00801401148174NK

    148 ~ 174

    20

    1.25

    0.5

    N Female

    0 ~ +70

    5o008014011625NK

    162.5

    25

    1.15

    0.2

    N Female

    0 ~ +70

     Basic Specifications

    Dimension

    80*140*18mm

    Forward Power

    500W

    Reverse Power

    250W

    Connector Type

    N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

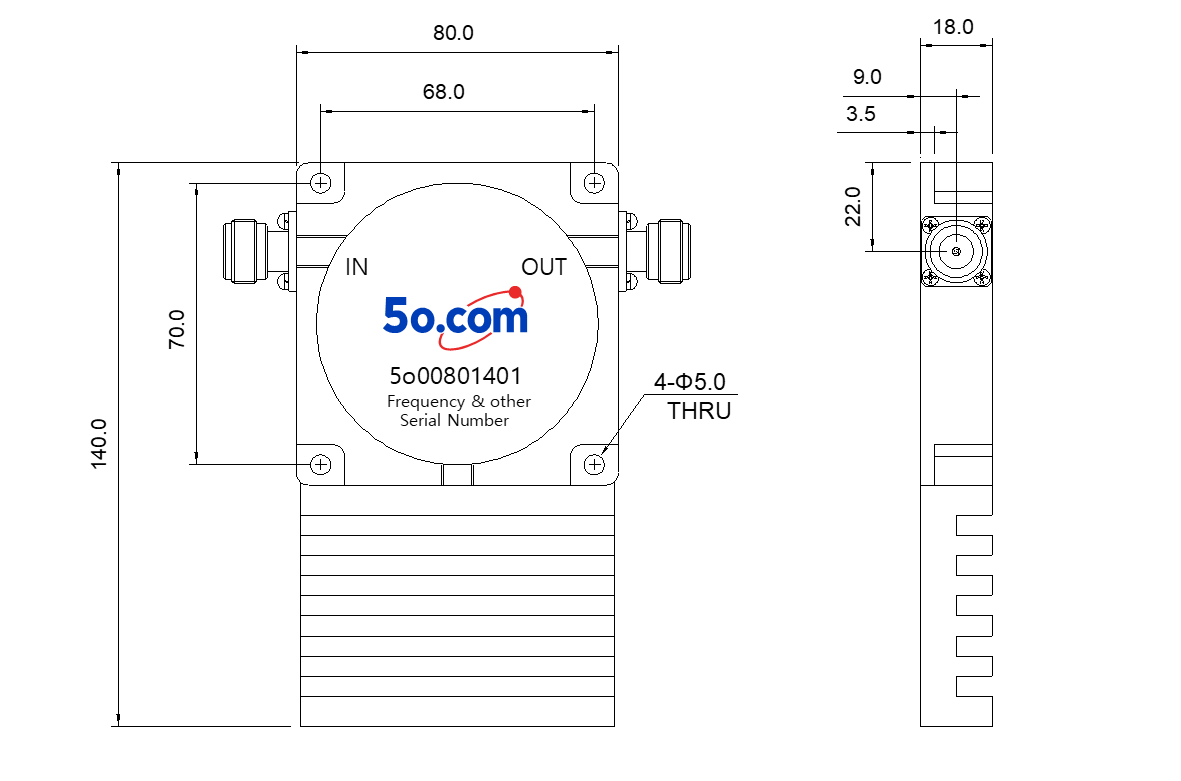

     Overall Dimension(mm)




    Instructions                           Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
