    Coaxial Isolator 0.8 ~ 2.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.

    RF Characteristics

    Part   Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o0072720082NK

    0.8   ~ 2.0

    12

    1.6

    1.3

    N   Female

    5o0072720082SK

    0.8   ~ 2.0

    12

    1.6

    1.3

    SMA   Female

     Basic Specifications

    Dimension

    72*72*27.4mm

    Impedance

    50Ω

    Forward   Power

    100W

    Operating   Temperature

    +10 ~ +70℃

    Reverse   Power

    30W

    Storage   Temperature

    -55~+125℃

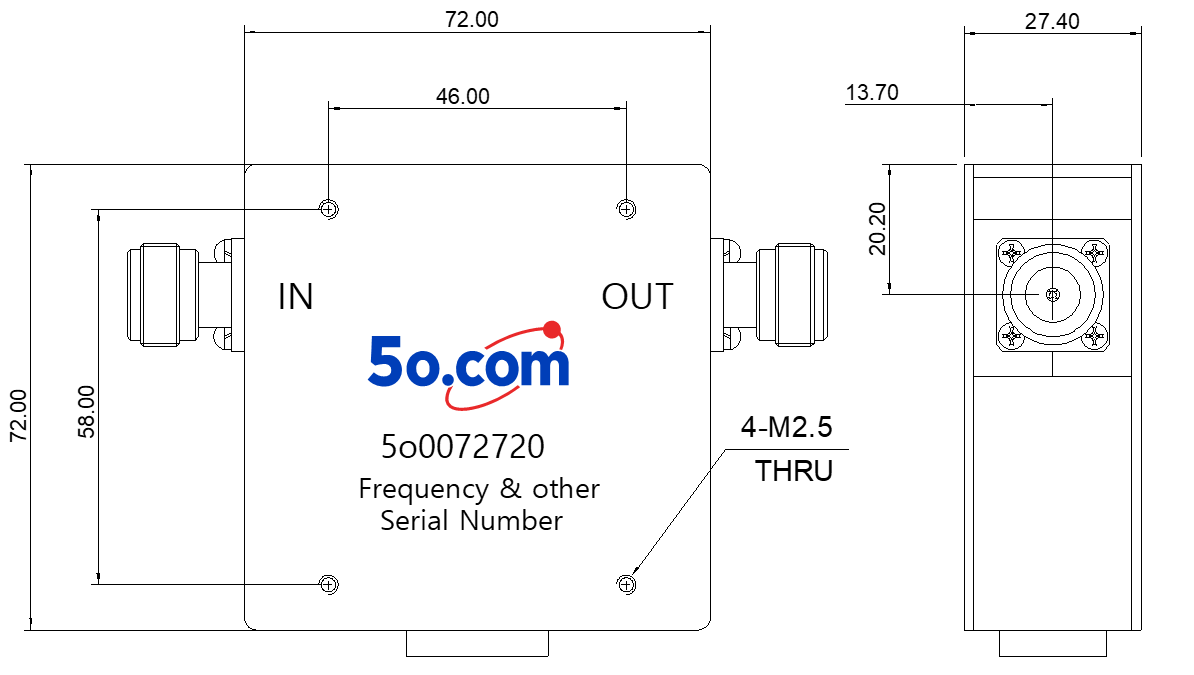

    Overall Dimension(mm)


    Instructions                           Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (MA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
