    Coaxial Isolator 300 ~ 475MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.


    RF Characteristics

    Part Number

    Frequency Range
    (MHz)

    Isolation
    Min(dB)

    VSWR
    Max

    Insertion Loss
    Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0060607300475SK

    300 ~ 475

    18

    1.3

    0.8

    SMA Female

    25±5

    17

    1.35

    1.0

    -40   ~ +85

    5o0060607300475NK

    300 ~ 475

    18

    1.3

    0.8

    N Female

    25±5

    17

    1.35

    1.0

    -40   ~ +85

    Basic Specifications

    Dimension

    60*60*28mm

    Impedance

    50Ω

    Forward Power

    160W

    Operating   Temperature

    -40 ~ +80℃

    Reverse Power

    50W

    Storage Temperature

    -55 ~+125℃

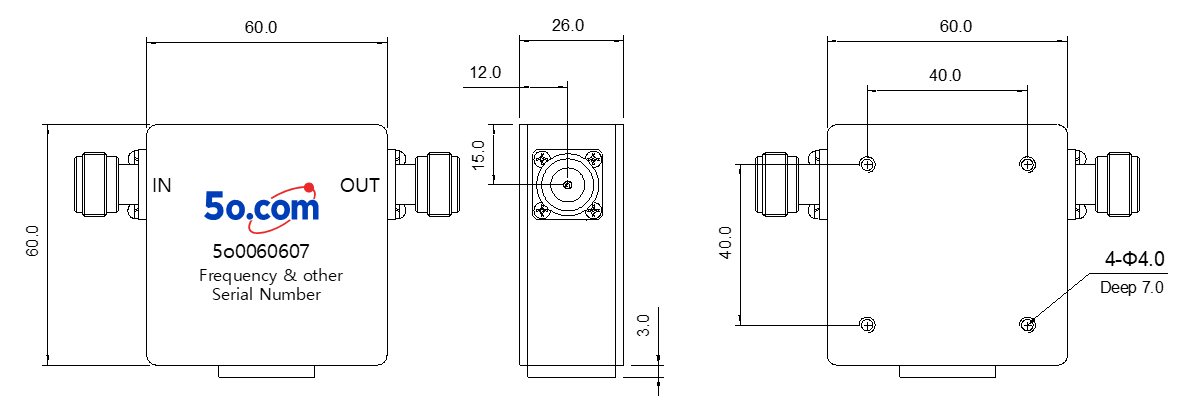

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
