    Coaxial Isolator 300 ~ 1500MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0053560300350NK

    300 ~ 350

    20

    1.25

    0.5

    N Female

    -30 ~ +70

    5o0053560350400NJ

    350 ~ 400

    20

    1.25

    0.5

    N Male

    -30 ~ +70

    5o0053560400500NK

    400 ~ 500

    20

    1.25

    0.4

    N Female

    -30 ~ +70

    5o0053560450500NJ

    450 ~ 512

    23

    1.2

    0.3

    N Male

    -30 ~ +70

    5o0053560500590NK

    500 ~ 590

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o0053560590710NK

    590 ~ 710

    20

    1.25

    0.4

    N- Female

    -40 ~ +85

    5o0053560700900NK

    700 ~ 900

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o00535608001000NK

    800 ~ 1000

    23

    1.2

    0.25

    N Female

    -40 ~ +85

    5o00535609001200NK

    900 ~ 1200

    23

    1.2

    0.3

    N Female

    0 ~ +65

    5o00535609601215NK

    960 ~ 1215

    23

    1.2

    0.3

    N Female

    0 ~ +65

    5o005356012001400NK

    1200 ~ 1400

    25

    1.15

    0.2

    N Female

    0 ~ +65

    Basic Specifications

    Dimension

    53*56*20mm

    Forward Power

    500W

    Reverse Power

    30W

    Connector Type

    N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

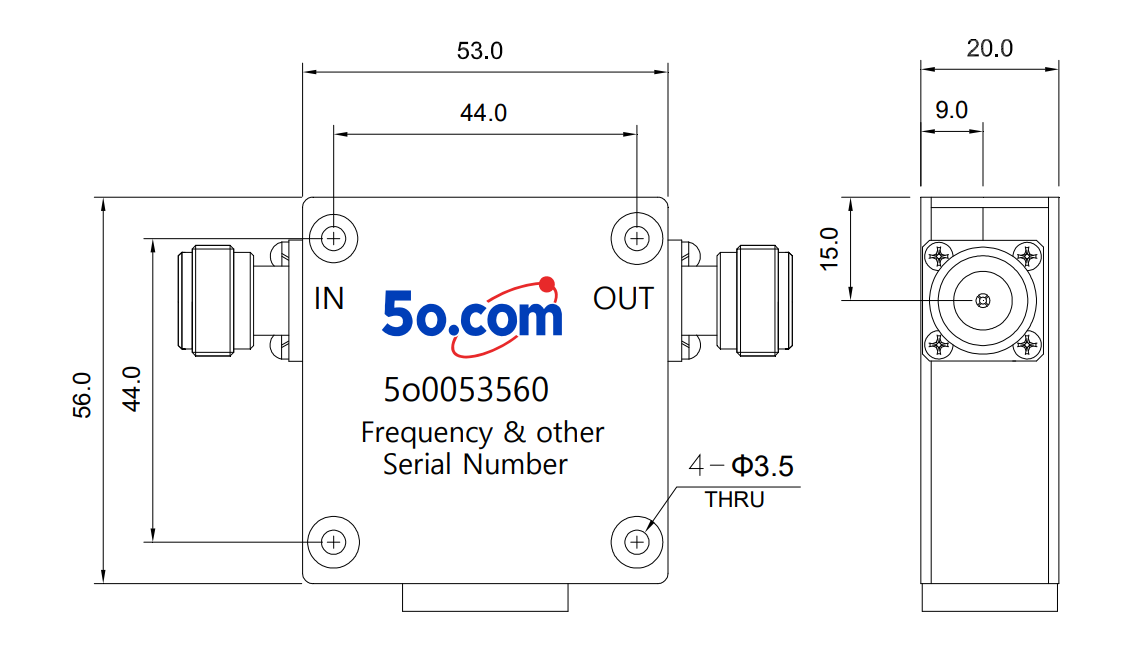

    Overall Dimension(mm)


    Instructions                           Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
