    Coaxial Isolator 1. 5 ~ 3.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o0050491153SK

    1.5 ~ 3.0

    17

    1.35

    0.5

    SMA Female

    5o0050491153NK

    1.5 ~ 3.0

    17

    1.35

    0.5

    N Female

     Basic Specifications

    Dimension

    50.8*49.5*19mm

    Impedance

    50Ω

    Forward   Power

    100W

    Operating   Temperature

    -0 ~ +70℃

    Reverse   Power

    30W

    Storage   Temperature

    -55~+125℃

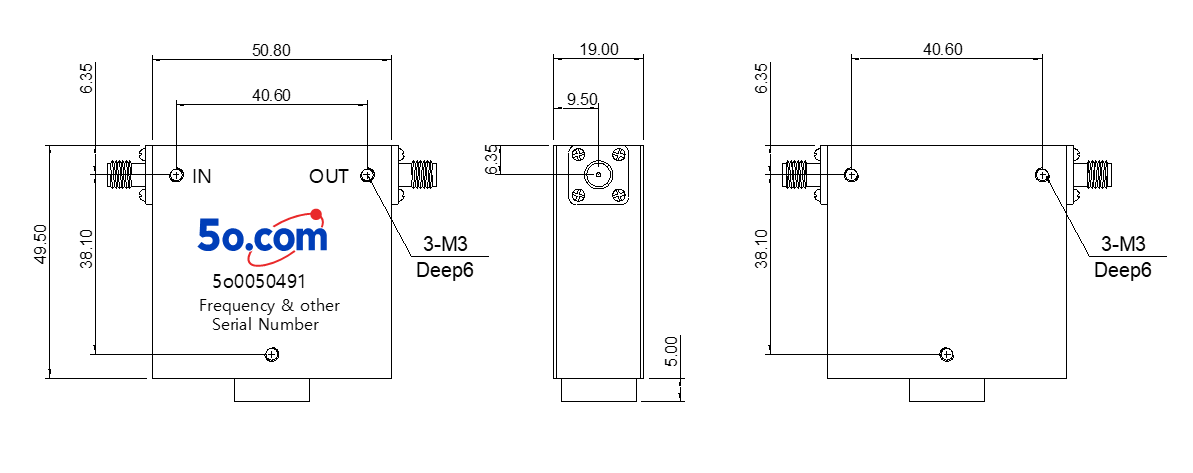

    Overall Dimension(mm)


    Instructions                           Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
