    Coaxial Isolator 250 ~ 1500MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0045800250260NK

    250 ~ 260

    20

    1.25

    0.5

    N Female

    -30 ~ +70

    5o0045800250300SK

    250 ~ 300

    18

    1.3

    0.5

    SMA Female

    -30 ~ +70

    5o0045800289359NK

    289 ~ 359

    20

    1.25

    0.5

    N Female

    -30 ~ +70

    5o0045800300330NK

    300 ~ 330

    20

    1.25

    0.4

    N Female

    -30 ~ +70

    5o0045800300400SK

    300 ~ 400

    18

    1.3

    0.7

    SMA Female

    -30 ~ +70

    5o0045800350400SK

    350 ~ 400

    23

    1.2

    0.35

    SMA Female

    -30 ~ +70

    5o0045800350500SK

    350 ~ 500

    16

    1.4

    0.6

    SMA Female

    -20 ~ +60

    5o0045800400430NK

    400 ~ 430

    25

    1.15

    0.25

    N Female

    -30 ~ +70

    5o0045800400500NK

    400 ~ 500

    20

    1.25

    0.35

    N Female

    -30 ~ +70

    5o0045800400512NK

    400 ~ 512

    20

    1.25

    0.5

    N Female

    -30 ~ +70

    5o0045800440470SK

    440 ~ 470

    25

    1.15

    0.25

    SMA Female

    -30 ~ +70

    5o0045800440470NK

    440 ~ 470

    25

    1.15

    0.25

    N Female

    -30 ~ +70

    5o0045800450600SK

    450 ~ 600

    18

    1.3

    0.5

    SMA Female

    -30 ~ +70

    5o0045800470650NK

    470 ~ 650

    18

    1.3

    0.6

    N Female

    -30 ~ +70

    5o0045800500700NK

    500 ~ 700

    18

    1.3

    0.5

    N Female

    -30 ~ +70

    5o00458006901000SK

    690 ~ 1000

    18

    1.3

    0.5

    SMA Female

    -30 ~ +70

    5o00458007001000SK

    700 ~ 1000

    18

    1.3

    0.5

    SMA Female

    -30 ~ +70

    5o00458008501150SJSK

    850 ~ 1150

    20

    1.25

    0.4

    SMA Male to SMA Female

    -30 ~ +70

    5o004580010001100NK

    1000 ~ 1100

    23

    1.2

    0.3

    N Female

    -30 ~ +70

    5o004580012001300NJNK

    1200 ~ 1300

    23

    1.2

    0.3

    N Male to

    N Female

    -30 ~ +70

    Basic Specifications

    Dimension

    45*80*24mm

    Forward   Power

    300W

    Reverse   Power

    250W

    Connector   Type

    SMA (Male/Female),   N(Male/Female)

    Storage   Temperature

    -55℃~+125℃

    Impedance

    50Ω

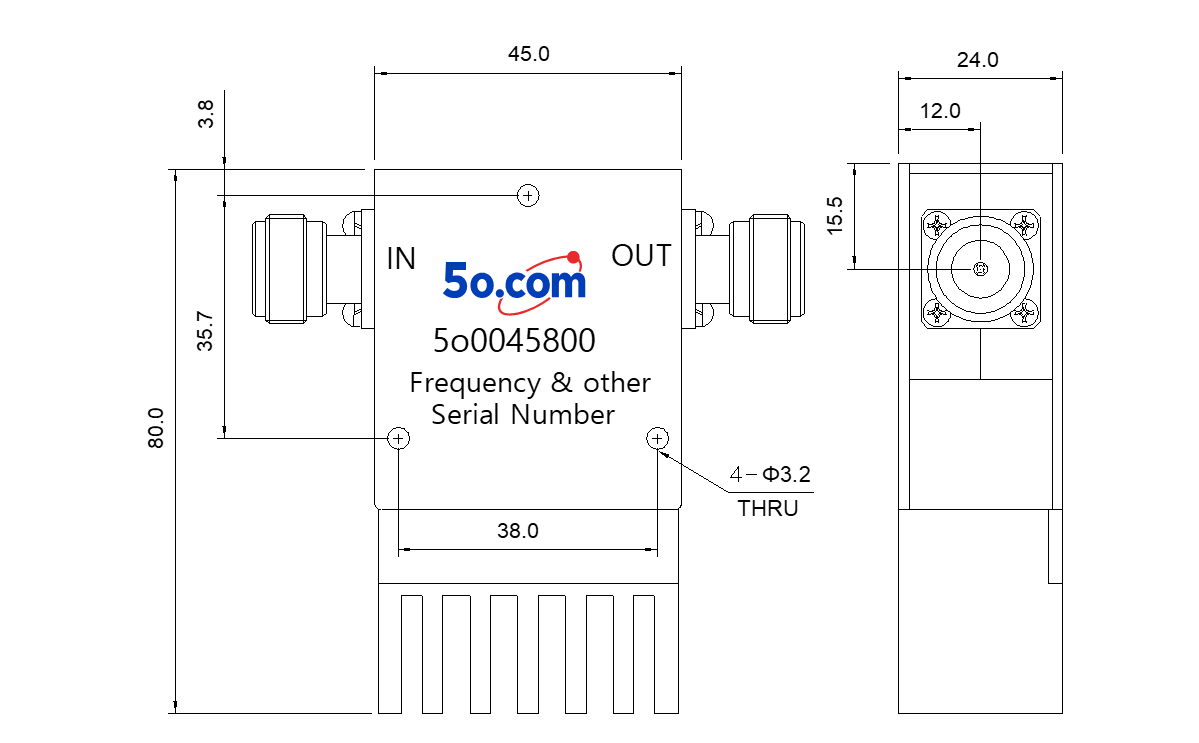

    Overall Dimension(mm)




    Instructions                           Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
