    Coaxial Isolator 700 ~ 2500MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0032320800900NK

    800 ~ 900

    23

    1.2

    0.3

    N Female

    -30 ~ +70

    5o0032320860960NK

    860 ~ 960

    23

    1.2

    0.3

    N Female

    -30 ~ +70

    5o00323209601215NK

    960 ~ 1215

    20

    1.25

    0.4

    N Female

    -30 ~ +70

    5o003232014501700SK

    1450 ~ 1700

    20

    1.25

    0.4

    SMA Female

    -30 ~ +70

    5o003232015002000SK

    1500 ~ 2000

    18

    1.3

    0.5

    SMA Female

    -30 ~ +70

    5o003232016002000NK

    1600 ~ 2000

    20

    1.25

    0.4

    N Female

    -20 ~ +70

    5o003232017002200SK

    1700 ~ 2200

    21

    1.25

    0.4

    SMA Female

    -30 ~ +70

    5o003232017002400SK

    1700 ~ 2400

    18

    1.3

    0.6

    SMA Female

    -40 ~ +70

    5o003232018002400SK

    1800 ~ 2400

    18

    1.3

    0.5

    SMA Female

    -40 ~ +85

    5o003232020002500SK

    2000 ~ 2500

    20

    1.25

    0.4

    SMA Female

    -40 ~ +85

    Basic Specifications

    Dimension

    32*32*18mm

    Forward   Power

    200W/100W

    Reverse   Power

    30W

    Connector   Type

    SMA(Male/Female),   N(Male/Female)

    Storage   Temperature

    -55℃~+125℃

    Impedance

    50Ω

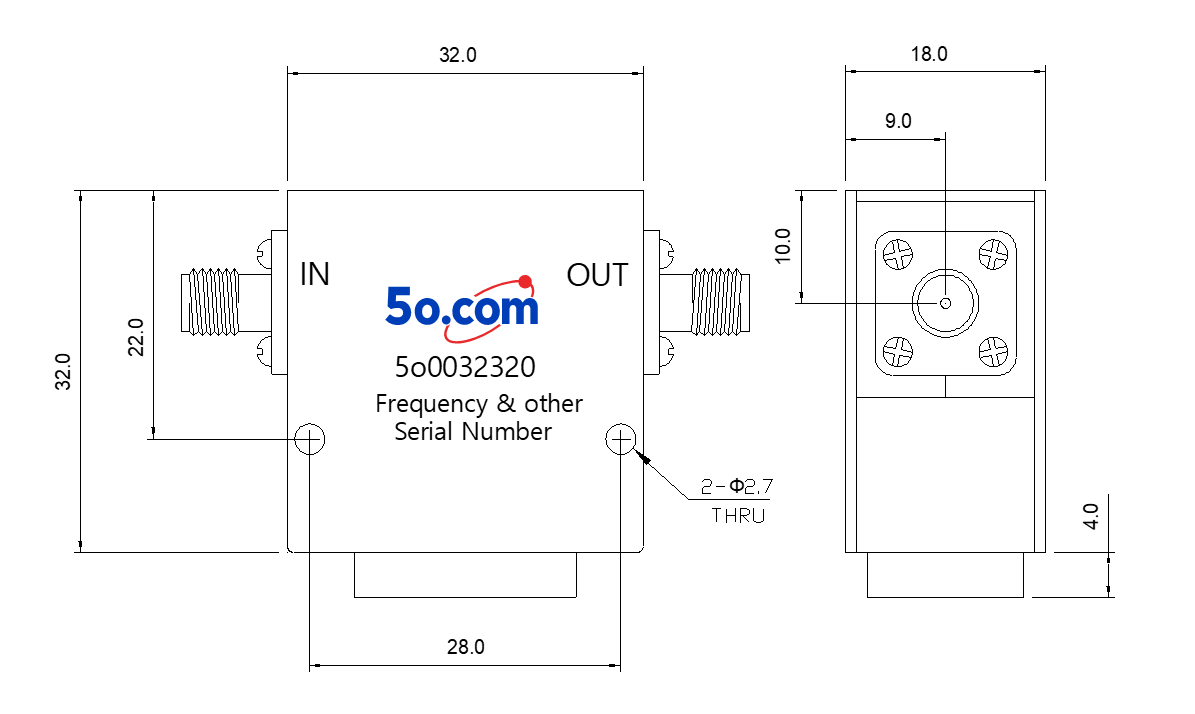

     Overall Dimension(mm)


    Instructions                           Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
