    Coaxial Isolator 700 ~ 5000MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
    (MHz)

    Isolation
    Min(dB)

    VSWR
    Max

    Insertion Loss
    Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0025280700750SK

    700 ~ 750

    20

    1.25

    0.4

    SMA Female

    -30 ~ +70

    5o0025280869894NK

    869 ~ 894

    23

    1.2

    0.3

    N Female

    -30 ~ +70

    5o0025280925960SK

    925 ~ 960

    23

    1.2

    0.3

    SMA Female

    -30 ~ +70

    5o002528012001400SK

    1200 ~ 1400

    23

    1.2

    0.3

    SMA Female

    -40 ~ +85

    5o002528015001700NK

    1500 ~ 1700

    23

    1.2

    0.3

    N Female

    -30 ~ +70

    5o002528017002200SK

    1700 ~ 2200

    18

    1.3

    0.5

    SMA Female

    -30 ~ +70

    5o002528017001900NKNJ

    1700 ~ 1900

    21

    1.25

    0.35

    N Female to

     N Male

    -30 ~ +70

    5o002528019002200NKNJ

    1900 ~ 2200

    21

    1.25

    0.35

    N Female to

     N Male

    -30 ~ +70

    5o002528020002500SK

    2000 ~ 2500

    20

    1.25

    0 5

    SMA Female

    -30 ~ +70

    5o002528020002700SK

    2000 ~ 2700

    18

    1.3

    0.5

    SMA Female

    -30 ~ +70

    5o002528023002500SK

    2300 ~ 2500

    23

    1.2

    0.3

    SMA Female

    -40 ~ +85

    5o002528023003000SK

    2300 ~ 3000

    18

    1.3

    0.5

    SMA Female

    -40 ~ +85

    5o002528024002600SK

    2400 ~ 2600

    23

    1.2

    0.3

    SMA Female

    -40 ~ +85

    5o002528025002700NK

    2500 ~ 2700

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o002528026003300SK

    2600 ~ 3300

    18

    1.3

    0.5

    SMA Female

    -30 ~ +70

    5o002528027003100SK

    2700 ~ 3100

    20

    1.25

    0.4

    SMA Female

    -40 ~ +85

    5o002528028503300SK

    2850 ~ 3300

    20

    1.25

    0.4

    SMA Female

    -40 ~ +85

    5o002528030003600SK

    3000 ~ 3600

    20

    1.25

    0.4

    SMA Female

    -40 ~ +85

    5o002528034004200SK

    3400 ~   4200

    20

    1.25

    0.4

    SMA Female

    -40 ~ +85

    5o002528035004000SK

    3500 ~ 4000

    20

    1.25

    0.4

    SMA Female

    -40 ~ +85

    5o002528040004600SK

    4000 ~ 4600

    20

    1.25

    0.4

    SMA Female

    -40 ~ +85

    5o002528044005000SK

    4400 ~ 5000

    20

    1.25

    0.4

    SMA Female

    -40 ~ +85

    Basic Specifications

    Dimension

    25.4*28.5*15mm

    Forward Power

    100W

    Reverse Power

    30W

    Connector Type

    N(Male/Female), SMA(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

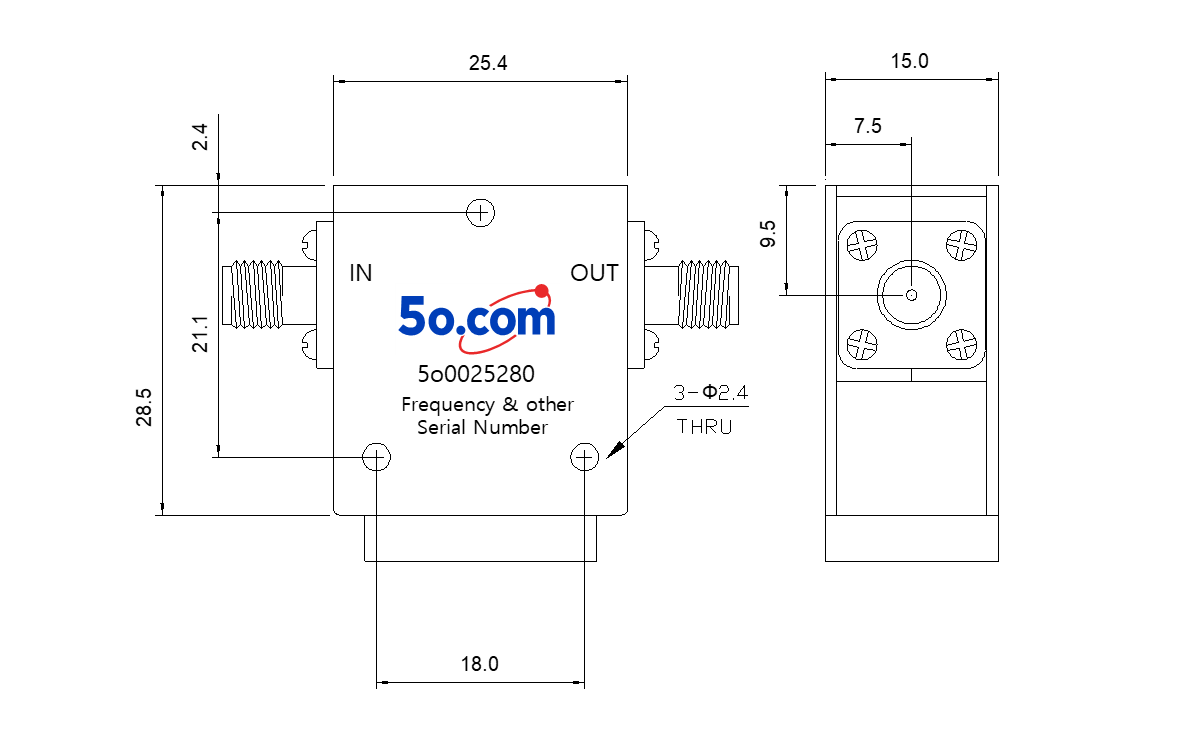

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
