    Coaxial Isolator 4.4 ~7.2GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range

    (GHz)

    Isolation
    Min(dB)

    VSWR
      Max

    Insertion Loss
    Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0015220445SK

    4.4 ~ 5.0

    18

    1.3

    0.4

    SMA Female

    -40 ~ +85

    5o00152204555NK

    4.5 ~ 5.5

    18

    1.3

    0.5

    N Female

    -40 ~ +85

    5o00152204752SK

    4.7 ~ 5.2

    23

    1.2

    0.35

    SMA Female

    -40 ~ +85

    5o0015220555SK

    5.0 ~ 5.5

    23

    1.2

    0.3

    SMA Female

    -40 ~ +85

    5o001522056SK

    5.0 ~ 6.0

    20

    1.25

    0.4

    SMA Female

    -40 ~ +85

    5o001522056NK

    5.0 ~ 6.0

    18

    1.3

    0.5

    N Female

    -40 ~ +85

    5o001522057SK

    5.0 ~ 7.0

    18

    1.3

    0.5

    SMA Female

    -40 ~ +85

    5o001522051585SK

    5.1 ~   5.85

    23

    1.2

    0.35

    SMA Female

    -40 ~ +85

    5o0015220556SK

    5.5 ~ 6.0

    23

    1.2

    0.3

    SMA Female

    -40 ~ +85

    5o0015220565715SK

    5.65 ~   7.15

    18

    1.35

    0.5

    SMA Female

    -40 ~ +85

    5o00152205759SK

    5.7 ~ 5.9

    23

    1.2

    0.3

    SMA Female

    -40 ~ +85

    5o00152205872SK

    5.8 ~ 7.2

    23

    1.2

    0.3

    SMA Female

    -40 ~ +85

    Basic Specifications

    Dimension

    15*22.5*13.8 mm

    Forward Power

    60W

    Reverse Power

    5W

    Connector Type

    N(Male/Female), SMA(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

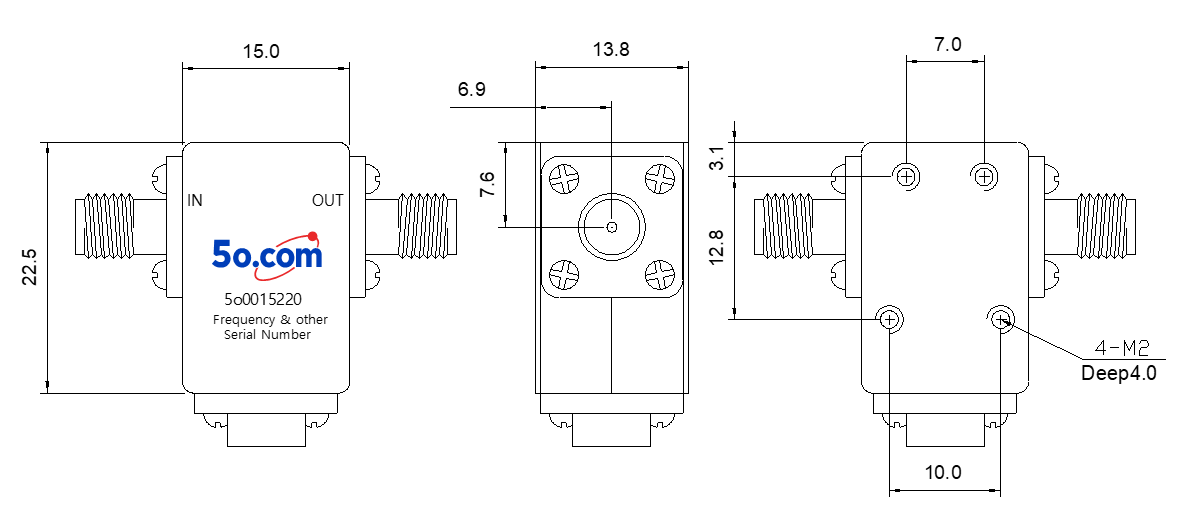

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
