    Coaxial Isolator 26.5 ~ 40.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o001326026540KK

    26.5 ~ 40.0

    1.5

    14

    1.6

    2.92mm Female

    +25±5

    1.7

    12

    1.8

    -40 ~ +80

    5o001326026540KJKK

    26.5 ~ 40.0

    1.5

    14

    1.6

    2.92mm Male to 2.92mm Female

    +25±5

    1.7

    12

    1.8

    -40 ~ +80

    Basic Specifications

    Dimension

    13*26*16.6mm

    Impedance

    50Ω

    Forward   Power

    10W

    Operating   Temperature

    -40 ~ +80℃

    Reverse   Power

    2W

    Storage   Temperature

    -55~+125℃

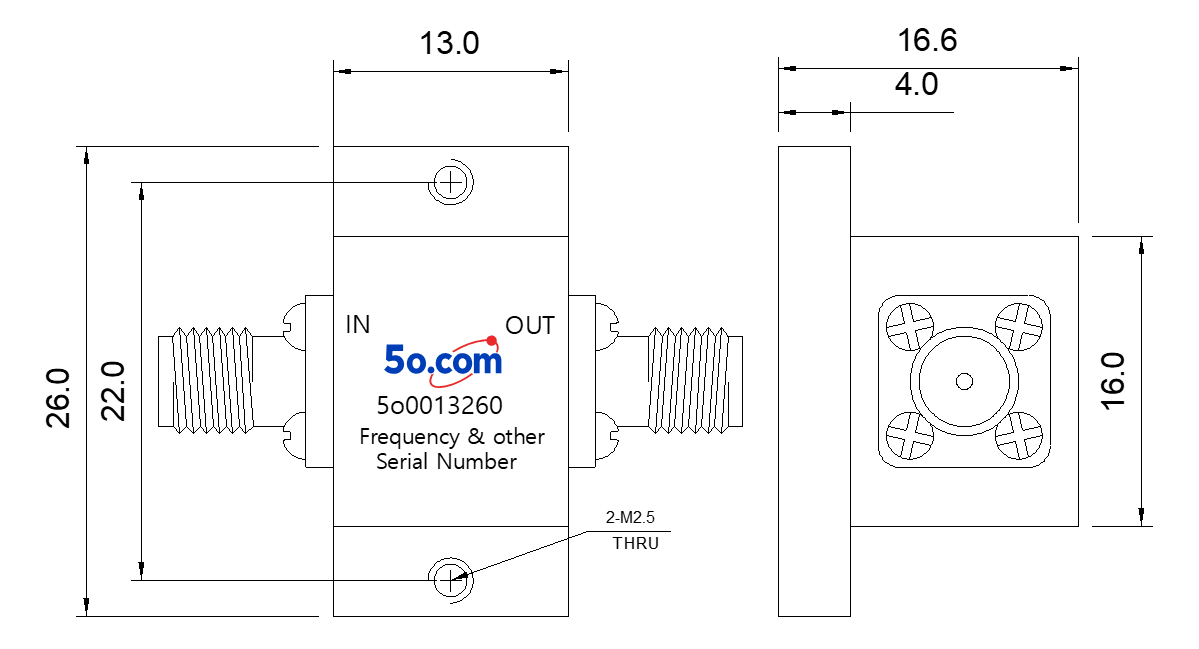

    Overall Dimension(mm)


    Instructions                           Tolerances: ±2% unless otherwise stated.

    ◆ It can be dual junction or multiple for high isolation.

    ◆ The connector can be selected according to requirements, Connect type (2.92mm Male/Female)

    ◆ Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
