    Coaxial Isolator 6.0 ~ 20.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
     Min(dB)

    VSWR
      Max

    Insertion Loss Max(dB)

    Connector Type

    Temp.(°C)

    5o001321068SK

    6.0 ~ 8.0

    18

    1.3

    0.5

    SMA Female

    -55 ~ +85

    5o001321079SK

    7.0 ~ 9.0

    20

    1.25

    0.5

    SMA Female

    -55 ~ +85

    5o00132107477SK

    7.4 ~ 7.7

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o00132107886SK

    7.8 ~ 8.6

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o0013210810SK

    8.0 ~ 10.0

    20

    1.2

    0.4

    SMA Female

    -55 ~ +85

    5o0013210811SK

    8.0 ~ 11.0

    20

    1.25

    0.4

    SMA Female

    -55 ~ +85

    5o0013210812SK

    8.0 ~ 12.0

    18

    1.3

    0.5

    SMA Female

    -55 ~ +85

    5o0013210910SK

    9.0 ~ 10.0

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o0013210911SK

    9.0 ~ 11.0

    20

    1.2

    0.4

    SMA Female

    -55 ~ +85

    5o00132109395SJ

    9.3 ~ 9.5

    23

    1.2

    0.3

    SMA Male

    -55 ~ +85

    5o00132101013SK

    10.0 ~ 13.0

    21

    1.2

    0.4

    SMA Female

    -55 ~ +85

    5o00132101015SKSJ

    10.0 ~ 15.0

    18

    1.35

    0.6

    SMA Female to SMA Male

    -55 ~ +85

    5o0013210107133SKSJ

    10.7 ~ 13.3

    23

    1.2

    0.35

    SMA Female to SMA Male

    -55 ~ +85

    5o00132101218SK

    12.0 ~ 18.0

    18

    1.3

    0.5

    SMA Female

    -55 ~ +85

    5o00132101375145SK

    13.75 ~ 14.5

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o0013210138178SK

    13.8 ~ 17.8

    18

    1.3

    0.5

    SMA Female

    -55 ~ +85

    5o0013210155165SK

    15.5 ~ 16.5

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o00132101618SK

    16.0 ~ 18.0

    20

    1.25

    0.5

    SMA Female

    -55 ~ +85

    5o00132101820SK

    18.0 ~ 20.0

    20

    1.25

    0.5

    SMA Female

    -55 ~ +85

    Basic Specifications

    Dimension

    13*21*13.8mm

    Forward Power

    80W

    Reverse Power

    20W

    Connector Type

    SMA(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

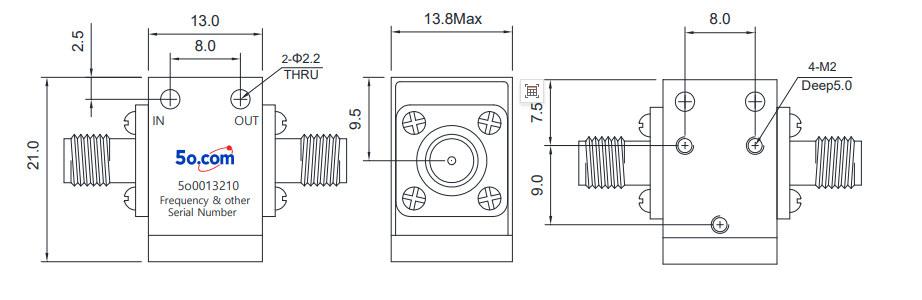

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, 2.92mm Male/Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
