    Coaxial Isolator 8.0 ~ 12.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Military, Space and Commercial applications.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    RF Characteristics

    Part   Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector Type

    5o0013180812SK

    8.0   ~ 12.0

    18

    1.3

    0.5

    SMA Female

    5o0013180812SJSK

    8.0   ~ 12.0

    18

    1.3

    0.5

    SMA   Male to SMA Female

    5o0013180812SKSJ

    8.0   ~ 12.0

    18

    1.3

    0.5

    SMA   Female to SMA Male

    Basic Specifications

    Dimension

    13*18*13.8mm

    Impedance

    50Ω

    Forward   Power

    60W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    10W

    Storage   Temperature

    -55~+125℃

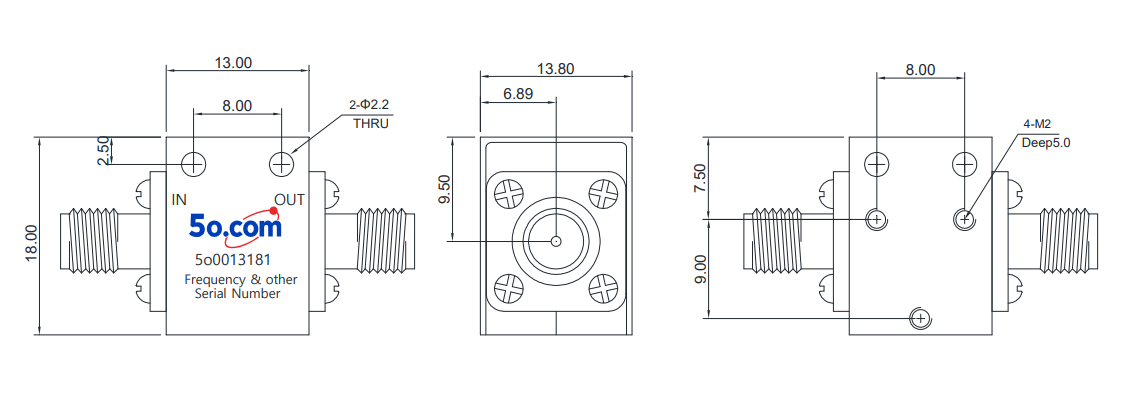

    Overall Dimension(mm)



    Instructions                                                   Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
