    Coaxial Isolator 18.0 ~ 28.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o001025018265KK

    18.0   ~ 26.5

    20

    1.3

    0.7

    2.92mm Female

    -55   ~ +85

    5o00102502328KK

    23.0   ~ 28.0

    20

    1.3

    0.9

    2.92mm Female

    -55   ~ +85

     Basic Specifications

    Dimension

    10.2*25.6*12.5mm

    Impedance

    50Ω

    Forward   Power

    10W

    Connector   Type

    2.92mm(Female/Male)

    Reverse   Power

    2W

    Storage   Temperature

    -55~+125℃

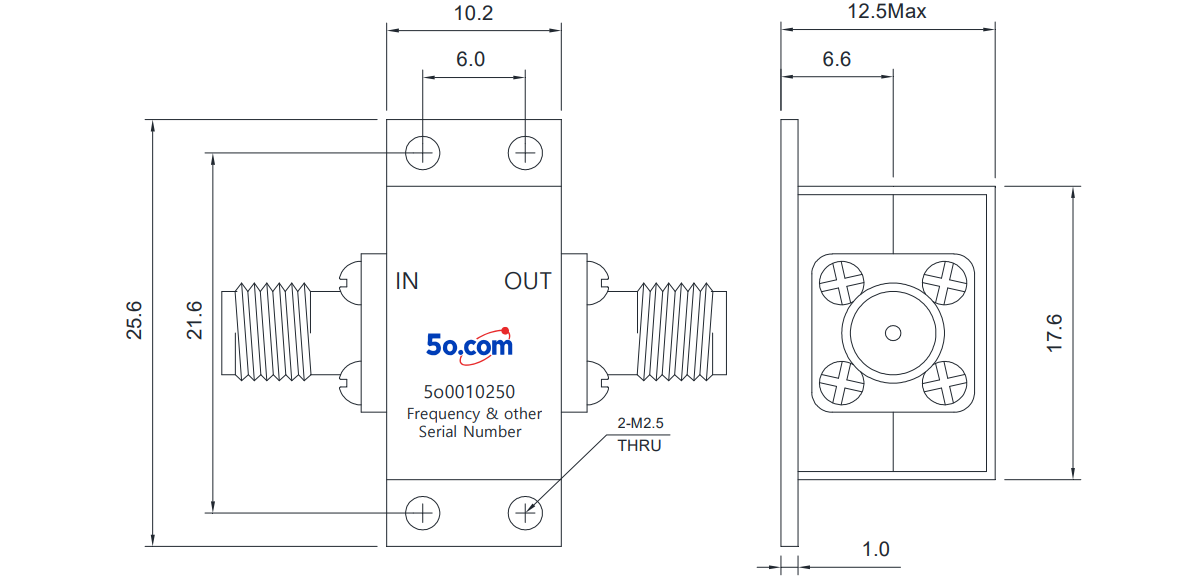

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆ It can be dual junction or multiple for high isolation.

    ◆ The connector can be selected according to requirements, Connect type (2.92mm Male/Female)

    ◆ Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
